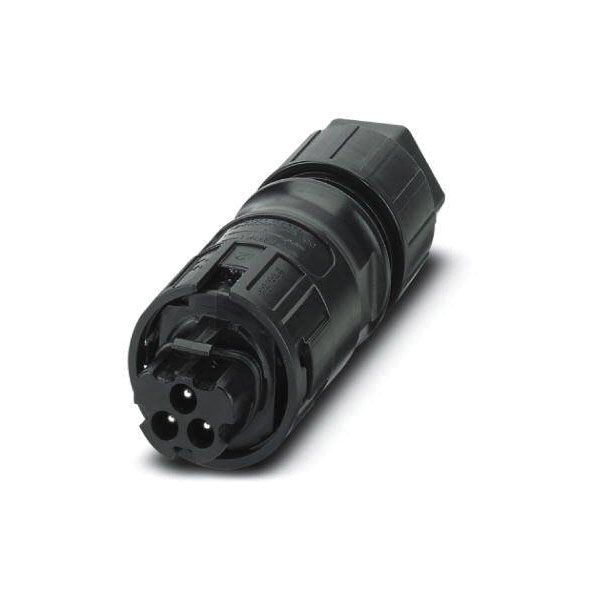

Phoenix Contact 1014498 PRC round plug connector black 3-pole 35A 690V

The Phoenix Contact 1014498 is a round connector designed for cable-side usage in photovoltaic systems. It is suitable for solar applications, providing secure and efficient connections in PV installations. This component is ideal for ensuring reliable connectivity in solar power setups.

Type	Connector
Number of Contacts	3
Cable Diameter	8mm
Colour	Black
Colour coding/contact insert	N/A
Connection	Screws
Connection cross section (fine-strand)	- - -mm²
Connection cross section (solid-core)	6 - 6mm²
Connection Type	N/A
Connector cross section	4 mm² / 6mm²
Connector Type	Pin
Contact Material	Cu-alloy, silver plated
Continuity resistance	N/AmOhm
Degree of protection (IP)	N/A
Fire Load	N/AkWh
Halogen free	N/A
Height	37.6mm
Housing Material	N/A
IP Rating	IP66, IP68, IP69K
Length	105mm
Material	PPE
Max. continuous temperature resistance contact part	N/A°C
Max. continuous temperature resistance strain relief	N/A°C
Mechanical coding	N/A
Model	N/A
Nominal Current	35A
Nominal Voltage	690V
Number of connections per pole	N/A
Number of pins	3
Number of Poles	N/A
Pole codification	N/A
Pollution degree	N/A
RAL-number coding/contact insert	N/A
Rated current	N/AA
Rated Surge Voltage	N/AkV
Rated voltage	N/AV
Series	PRC 3-FC-MS6 8-21
Surface coating contacts	N/A
Type of locking	N/A
Width	37.6mm
With strain relief	N/A
