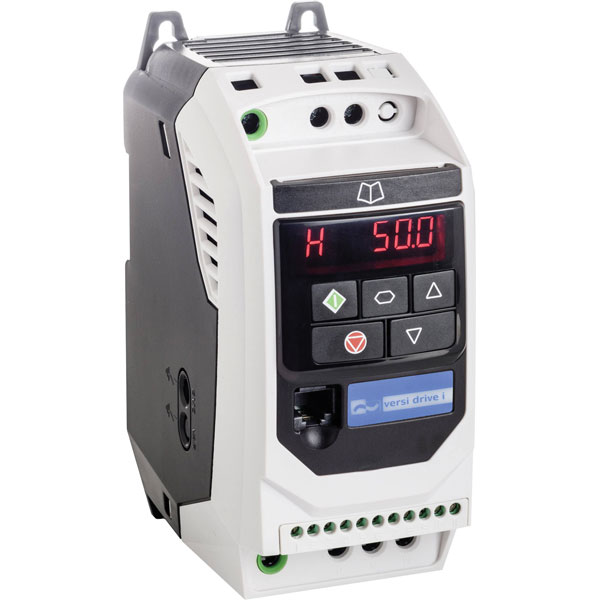

Peter Electronic 2I300.40150 Inverter: Compact 1.5 kW Motor Control, 3-Phase

Peter Electronic manufactures the VD i 150/3E3 frequency inverter with a power rating of 1.5 kW, suitable for 3-phase 400 V systems. This device is designed to control the speed of electric motors, primarily in industrial settings. Typical applications include conveyor systems, pumps, and fans, providing efficient energy management and precise motor control.

Type	Frequency inverter
Depth	173mm
Dimensions	(W x H x D) 123 x 82 x 173 mm
Filter class	C1
Frequency Range	0 Hz - 500 Hz
Height	82mm
IP Rating	IP20
Max. frequency	500Hz
Maximum Input Volage	400V
Min. frequency	0Hz
Misc Attribute	VD i 150/3E3
Network	3-phase
Nominal Current	4.1A
Output rating (max.)	1.5kW
Width	123mm
