PEM CWT MiniHF 6/B/2.5/100/5 Clamp Meter Adapter 1200A Max Flexible Oscilloscope

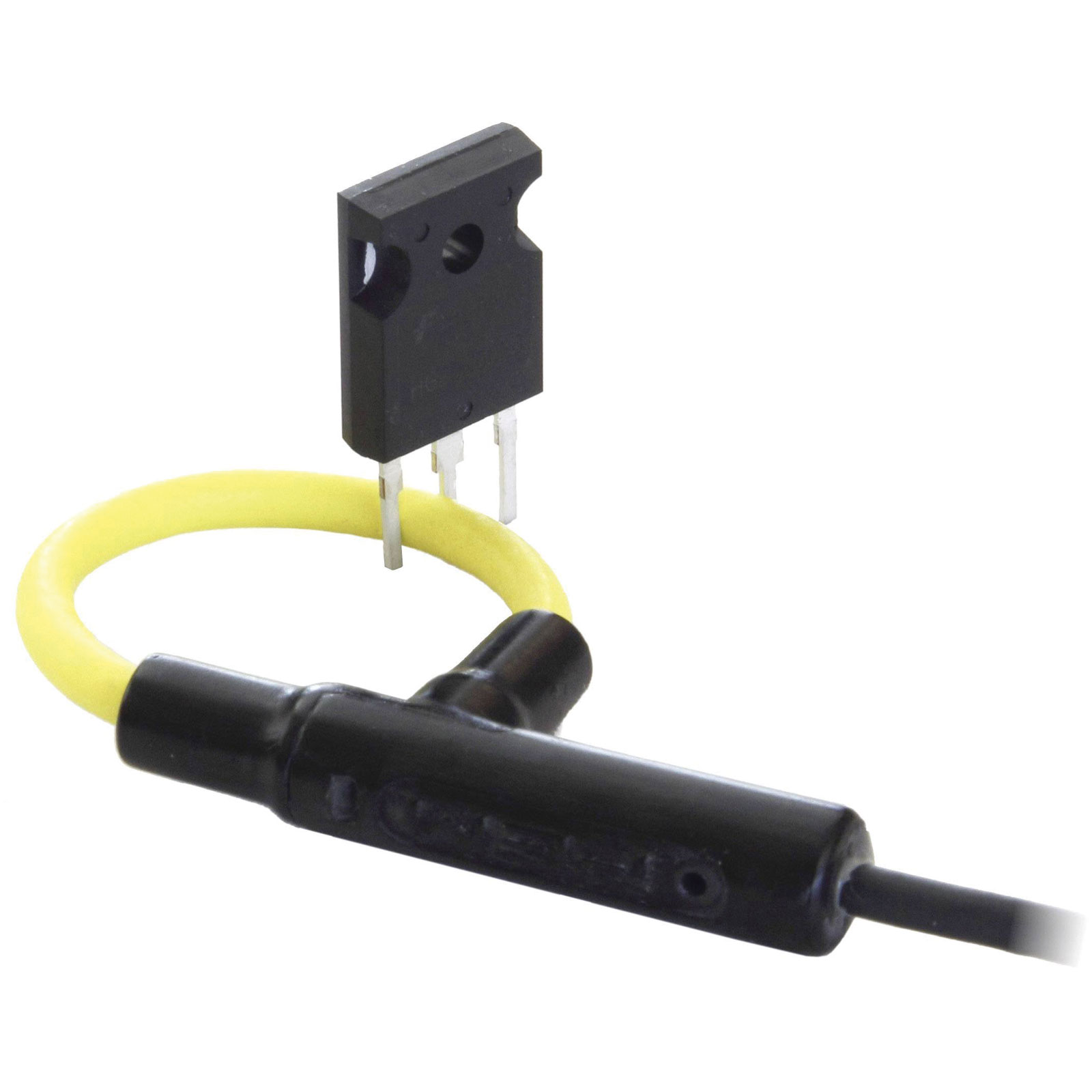

The PEM CWT MiniHF 6/B/2.5/100/5 clamp meter adapter features a flexible Rogowski coil with an A/AC reading range of up to 1200 A. Manufactured by PEM, this current loop and clamp adapter is ideal for measuring current in challenging environments with restricted space. It is commonly used in power electronics and power quality monitoring applications.

Type	Clamp meter adapter
Maximum AC Current Measurement	1200A
Basic Accuracy	2%
Calibrated to	Manufacturer's standards (no certificate)
Current reading	AC
Dimensions	(L x W x H) 183 x 93 x 32 mm
Height	32mm
Length	183mm
Opening range of current clamps	100mm
Output signal (max.)	6V
Power supply (details)	4 x AA battery
Type B	BNC socket
Width	93mm
