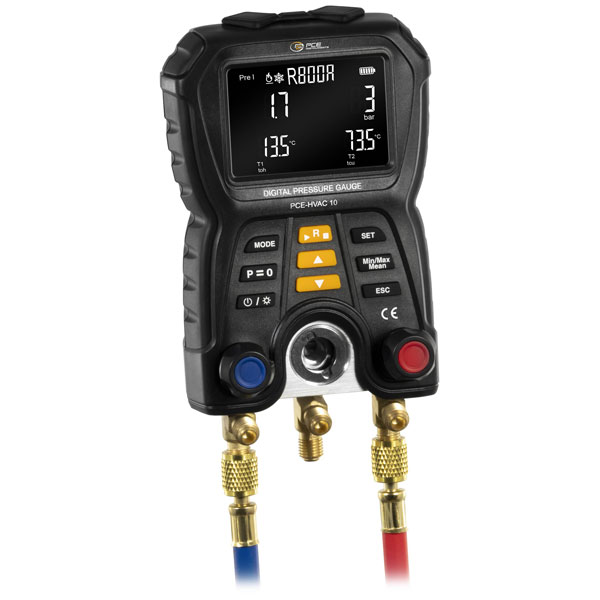

PCE Instruments PCE-HVAC 10 Pressure Meter 60 bar two-way valve block 3 conn

PCE Instruments PCE-HVAC 10, also known as 3324684, is a precision pressure meter designed for demanding HVAC applications. The pressure meter features a two-way valve block system and provides three connection points, capable of accurately measuring up to 60 bar. This makes it particularly suitable for monitoring and diagnostic tasks in heating, ventilation, and air conditioning systems where precise pressure reading is critical. Engineers will appreciate the robust construction and reliable performance in both industrial and laboratory settings, ensuring accurate pressure management and system optimisation. With its versatility and high measurement capabilities, the PCE-HVAC 10 is an indispensable tool for professionals requiring exact pressure assessments.

Type	Differential pressure gauge
Suitable For	Pressure washer
Basic Accuracy	0.5%
Dimensions	(L x W x H) 204 x 116 x 65 mm
Height	65mm
IP Rating	IP42
Length	204mm
Pneumatic connection	2-way valve block with 3 connections 7/16" – UNF
Power Supply	6V
Print Resolution	0.01bar
Product Type	Differential pressure gauge
Reading range	-1 - 60 bar
Reading range (max.)	60bar
Reading range (min.)	-1bar
Resolution	0.01bar
Weight	768g
Width	116mm
