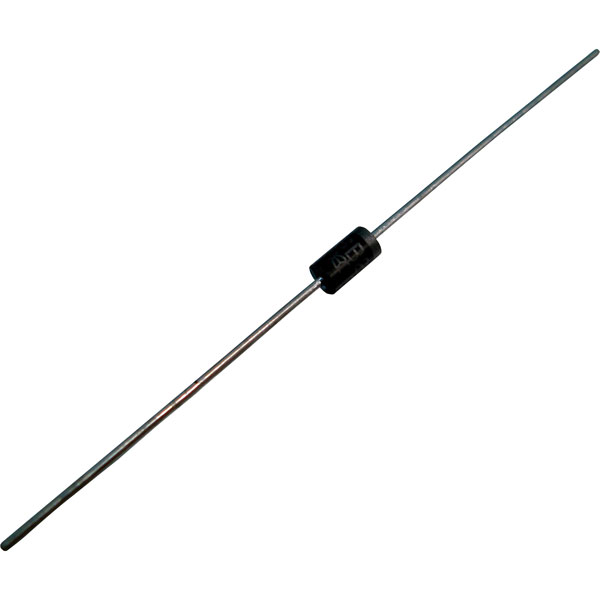

This 1A 100V Schottky barrier rectifier diode comes in an axial DO-41 package and is suitable for applications such as low voltage, high frequency inverters, free wheeling, and polarity protection devices.
Very low forward voltage drop Case marked for polarity Flammability rating UL 94V-0
Peak Reverse Voltage
100V
Average Forward Current
1A
Peak Forward Current
30A
Max. Junction Temperature
175°C
Package
DO-41
