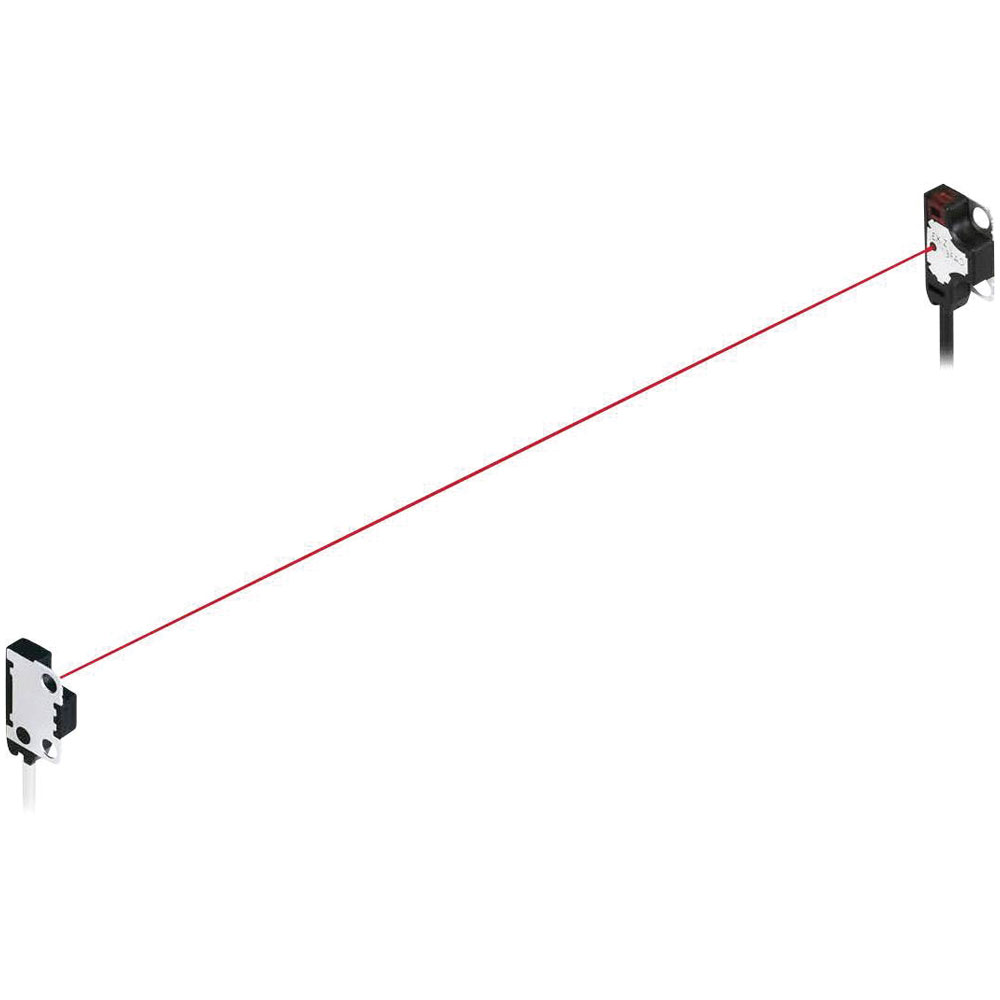

Panasonic EX-Z13B-P Miniature One-way Light Barrier 0.5mm Range

Panasonic's EX-Z13B-P is a one-way light barrier with a lateral transmitter and receiver for dark-on operation. This compact and reliable sensor is suitable for detecting and counting objects in complex automation environments. It's ideal for use in industrial and logistics applications where precise object monitoring is required.

Type	One-way light barrier
Cable Length	2.00m
Connector	Cable, open end
Depth	6.5mm
Dim	(W x H x D) 5.5 x 15.9 x 6.5 mm
Functions	Dark-ON
Height	15.9mm
IP Rating	IP67
Max. operating voltage	24V DC
Max. Range	500mm
Max. temperature	55°C
Min. operating voltage	12V DC
Min. temperature	-10°C
Operating Voltage	12 - 24 V DC
Output Type	PNP
Response Time	0.5ms
Width	5.5mm
