Panasonic HG-C1400 Laser Rangefinder 24V 400mm Max Range Compact Design

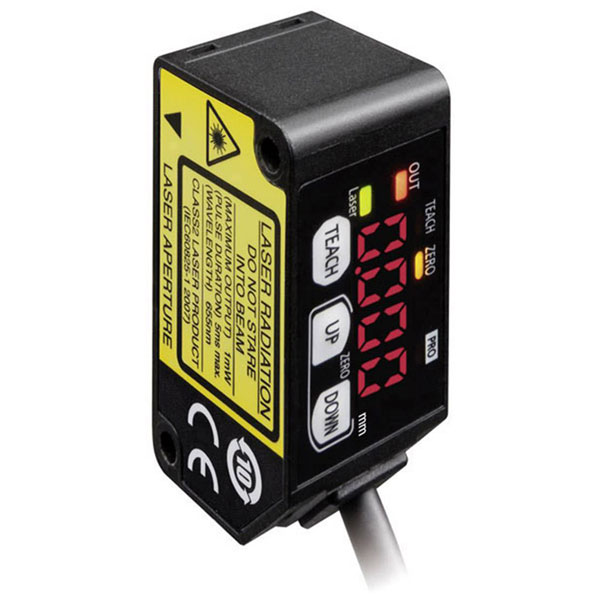

Panasonic manufactures the HG-C1400 laser rangefinder, offering a maximum range of 400 mm with a compact size of 44 x 20 x 25 mm. This 24 V DC distance sensor is ideal for precise proximity alert and distance detection applications. It is commonly used in automation systems and industrial environments for accurate depth and position measurement.

Type	Laser rangefinder
IP Rating	IP67
Beam diameter	500µm
Cable Length	2.00m
Dim	(L x W x H) 44 x 20 x 25 mm
Height	25mm
Laser Category	2
Length	44mm
Max. Range	400mm
Maximum Temperature	+45°C
Min. temperature	-10°C
Operating Voltage	24V DC
Output Type	NPN
Resolution	300µm
Tolerance ±	200mm
Transmitter type	SC laser red
Width	20mm
