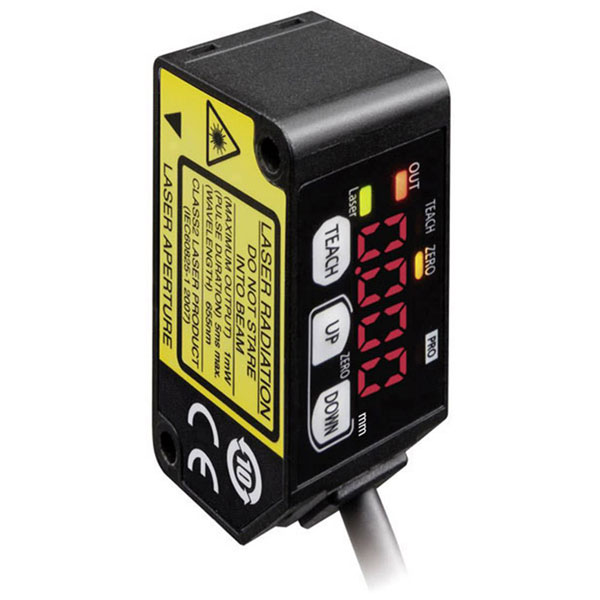

Panasonic HG-C1200 Laser Rangefinder 24V 200mm Range LED Display

Panasonic
Order Code:

05-6973

Brand: Panasonic MPN: HG-C1200 EAN-13: 2050004531008
Qty Was Unit Price (Ex VAT)
1+ £758.89 £478.10
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back order

The Panasonic HG-C1200 is a compact laser rangefinder designed for precise distance measurement applications. With a maximum range of 200 mm and dimensions of 44 x 20 x 25 mm, this distance sensor is ideal for proximity alerts and distance detection. Typical applications include use in industrial automation and quality control systems.
Type Laser rangefinder
IP Rating IP67
Beam diameter 300µm
Cable Length 2.00m
Dim (L x W x H) 44 x 20 x 25 mm
Height 25mm
Laser category 2
Length 44mm
Max. Range 200mm
Max. temperature +45°C
Min. temperature -10°C
Operating Voltage 24V DC
Outputs NPN
Resolution 200µm
Tolerance ± 80mm
Transmitter type SC laser red
Width 20mm
