Panasonic HG-C1100-P Laser Rangefinder 24V DC 100mm 4-Digit LED Display

Panasonic
Order Code:

05-6972

Brand: Panasonic MPN: HG-C1100-P EAN-13: 2050002843226
Qty Was Unit Price (Ex VAT)
1+ £677.96 £427.11
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
1 in stock, despatched in 4 working days

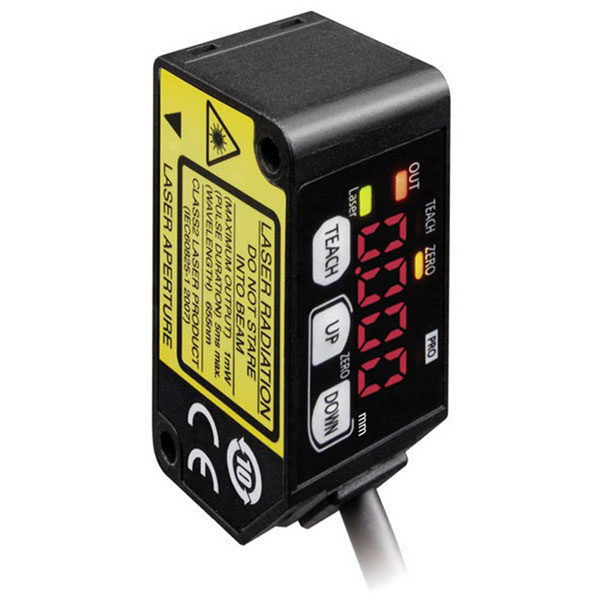

The Panasonic HG-C1100-P is a compact laser rangefinder designed for precise distance measurement with a maximum range of 100 mm, housed in a 44 x 20 x 25 mm unit. Powered by 24 V DC, this sensor is ideal for integration into automated systems, offering applications in proximity alerts and distance detection. Its versatility makes it suitable for various industrial settings requiring precise measurement and positioning.
Type Laser rangefinder
IP Rating IP67
Beam diameter 120µm
Cable Length 2.00m
Dim (L x W x H) 44 x 20 x 25 mm
Height 25mm
Laser category 2
Length 44mm
Max. Range 100mm
Max. temperature +45°C
Min. temperature -10°C
Operating Voltage 24V DC
Outputs PNP
Resolution 70µm
Tolerance ± 35mm
Transmitter type SC laser red
Width 20mm
