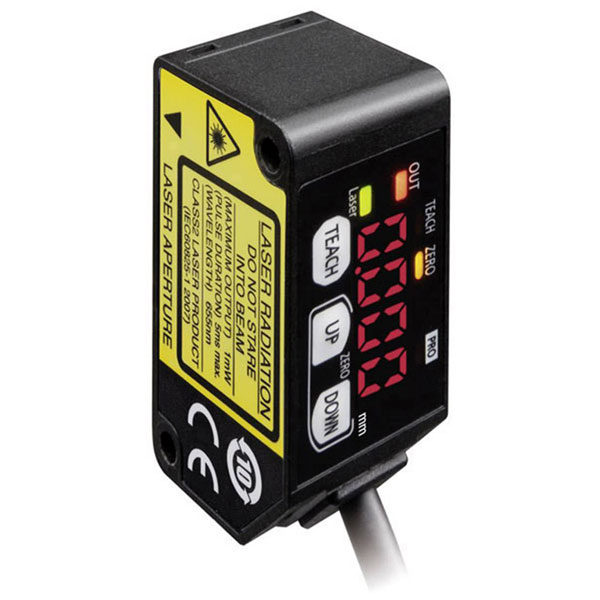

Panasonic HG-C1050-P Laser Rangefinder 50mm 24V DC 4-digit LED Display

The Panasonic HG-C1050-P laser rangefinder is a compact distance sensor offering a maximum range of 50 mm, powered by 24 V DC. With dimensions of 44 x 20 x 25 mm, it is ideal for applications requiring precise proximity alerts and distance detection. Typical uses include automated systems where accurate measurement and analogue sensing are necessary.

Type	Laser rangefinder
IP Rating	IP67
Beam diameter	70µm
Cable Length	2.00m
Dim	(L x W x H) 44 x 20 x 25 mm
Height	25mm
Laser Category	2
Length	44mm
Max. Range	50mm
Maximum Temperature	+45°C
Min. temperature	-10°C
Operating Voltage	24V DC
Output Type	PNP
Resolution	30µm
Tolerance ±	15mm
Transmitter type	SC laser red
Width	20mm
