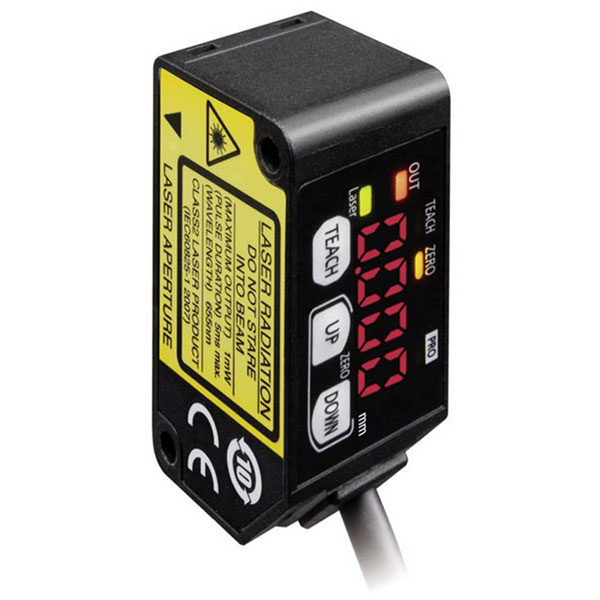

Panasonic HG-C1050 Laser Sensor 50mm Range Compact LED Display

The Panasonic HG-C1050 is a compact laser rangefinder designed for precise distance measurement with a maximum range of 50 mm. Operating at 24 V DC, this sensor is ideal for proximity alerts and distance detection in industrial applications. This rangefinder is commonly used in automation systems where accurate measurement is crucial.

Type	Laser rangefinder
IP Rating	IP67
Beam diameter	70µm
Cable Length	2.00m
Dim	(L x W x H) 44 x 20 x 25 mm
Height	25mm
Laser Category	2
Length	44mm
Max. Range	50mm
Maximum Temperature	+45°C
Min. temperature	-10°C
Operating Voltage	24V DC
Output Type	NPN
Resolution	30µm
Tolerance ±	15mm
Transmitter type	SC laser red
Width	20mm
