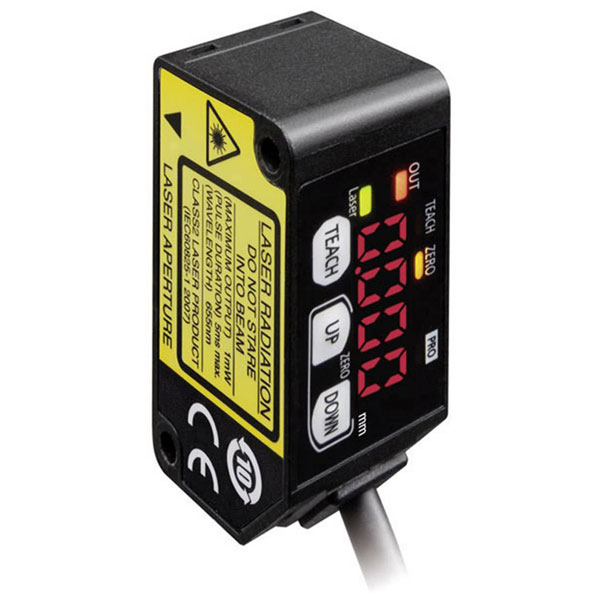

Panasonic HG-C1030 Laser Rangefinder 24V 30mm Compact Precision Sensor

The Panasonic HG-C1030 laser rangefinder is a compact and precise distance sensor with a maximum range of 30 mm and dimensions of 44 x 20 x 25 mm. Operating at 24 V DC, it is suitable for applications requiring accurate proximity alerts and distance detection. This sensor is ideal for use in industrial automation and control systems.

Type	Laser rangefinder
IP Rating	IP67
Beam diameter	50µm
Cable Length	2.00m
Dim	(L x W x H) 44 x 20 x 25 mm
Height	25mm
Laser Category	2
Length	44mm
Max. Range	30mm
Maximum Temperature	+45°C
Min. temperature	-10°C
Operating Voltage	24V DC
Output Type	NPN
Resolution	10µm
Tolerance ±	5mm
Transmitter type	SC laser red
Width	20mm
