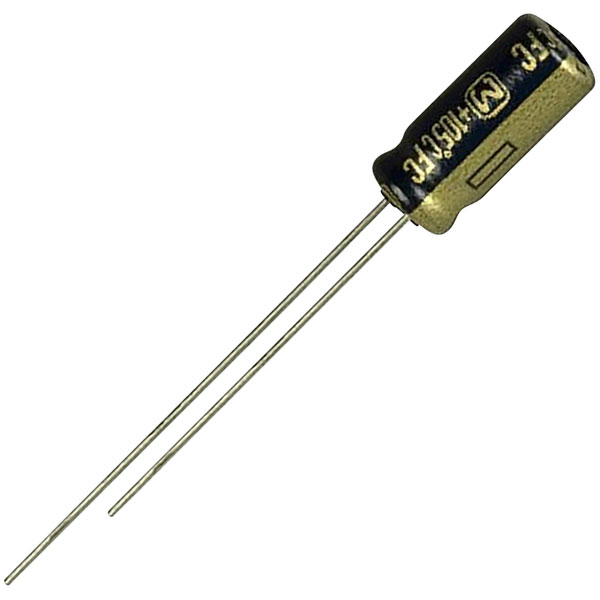

Panasonic EEU-FC1A101S Electrolytic capacitor 100uF 10V 20% Radial 5mm Dia

Panasonic's EEU-FC1A101S is a high-quality electrolytic capacitor designed for demanding electronic applications. This particular component features a capacitance of 100 microFarads, a voltage rating of 10 volts, and a tolerance of 20 per cent, making it suitable for various applications requiring energy storage and filtering. The capacitor employs a radial lead configuration with a 5 mm diameter, allowing for compact and efficient PCB mounting. Typical uses include power supply smoothing, decoupling, and coupling in circuits where stability and reliability are crucial. The EEU-FC1A101S, also referred to as ELKO ALUM 100UF 20% 10V RADIAL, meets stringent design and performance criteria, making it an excellent choice for both consumer electronics and industrial applications.

Type	Electrolytic capacitor
Capacitance	100µF
Tolerance	20%
Voltage	10V
Dimensions	(Ø) 5mm
Operating Temperature	-55°C
Content	1
Cross Section	2mm
Diameter	5mm
Material	Aluminium
Maximum Temperature	+105°C
Min. temperature	-55°C
