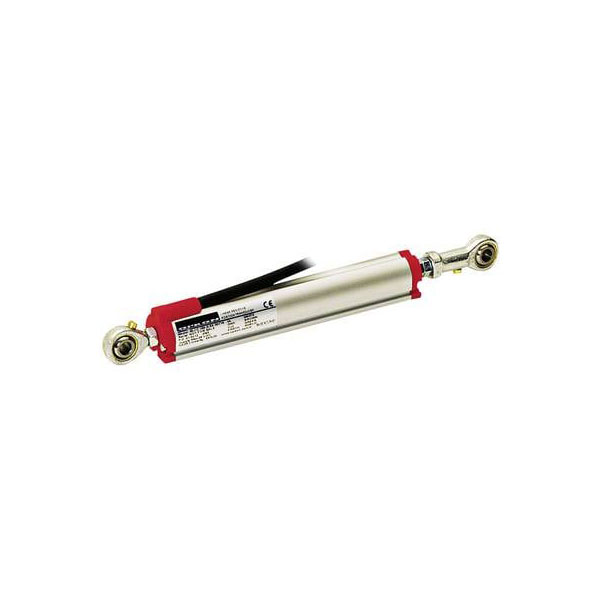

Opkon SLpiece-150-D-5K-1M Position Sensor 28V DC 150mm Stroke Compact Design

The Opkon SLPC-150-D-5K-1M is a linear potentiometer position sensor designed for precise distance measurement. It operates with a stroke length of 150 mm and requires a 28 V DC power supply. Commonly utilised in linear actuators, this sensor is suitable for applications requiring accurate position feedback.

Type	Position sensor
IP Rating	IP53
Maximum Operating Temperature	80°C
Maximum Temperature	80°C
Min. temperature	-20°C
Minimum Operating Temperature	-20°C
Mounting Type	Ball joints on both ends
Nominal Voltage	28V DC
Operating Temperature	-20 up to 80°C
Speed (max.)	5m/s
Stroke Length	150mm
