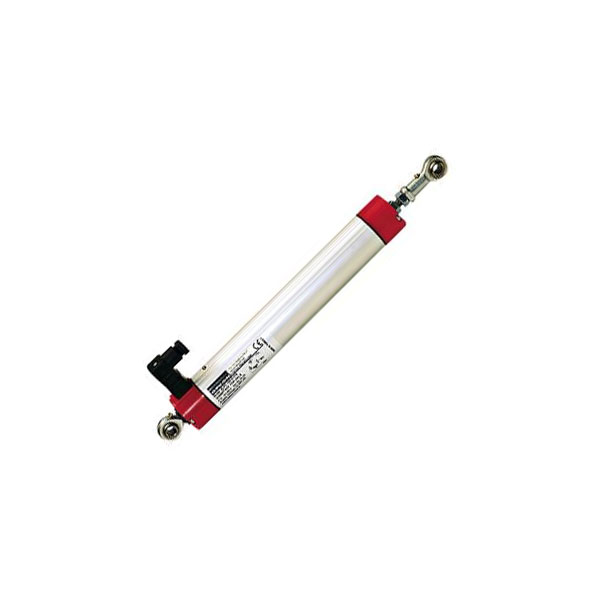

Opkon Lpiece-300-D-5K-C2 Position Sensor 300mm 28V DC Flexible Mounting

The Opkon LPC-300-D-5K-C2 is a linear potentiometer position sensor featuring a 300 mm stroke length and operates on 28 V DC. It is designed for precision measurement in linear actuators and other applications requiring accurate distance sensing. Typical uses include automation systems and industrial machinery for monitoring and control tasks.

Type	Position sensor
IP Rating	IP65
Maximum Operating Temperature	80°C
Maximum Temperature	80°C
Min. temperature	-20°C
Minimum Operating Temperature	-20°C
Mounting Type	Ball joints on both ends
Nominal Voltage	28V DC
Operating Temperature	-20 up to 80°C
Speed (max.)	5m/s
Stroke Length	300mm
