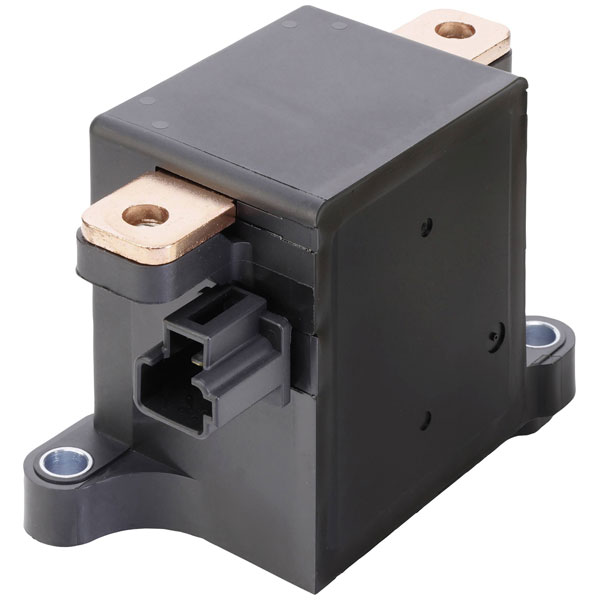

Omron G9EK-1-UTU-DC12 Power relay 12V DC 120A PCB Mounts Plug-In Relays

Omron's G9EK-1-UTU-DC12 power relay is a robust component designed for high-current applications on printed circuit boards. With a nominal voltage of 12 V DC and a substantial current rating of 120 A, this plug-in relay is well-suited for demanding electrical systems requiring reliable switching capabilities. Its design allows for easy integration into PCB layouts, making it ideal for use in automotive, industrial, and renewable energy systems where space and efficiency are critical. The relay's construction ensures longevity and stable performance under thermal and electrical stress, making it a preferred choice for engineers seeking a dependable solution in both static and dynamic application environments.

Type	G9EK-1-UTU-DC12
Coil Nominal Voltage	12V DC
Colour	Black
Contact Type	1 maker
Content	1
Control Mode	monostable, 1 coil
Dimensions	(L x W x H) 86 x 47.7 x 64.2 mm
Height	64.2mm
Length	86mm
Max. pick-up Voltage	16V DC
Maximum Temperature	70°C
Min. pick-up Voltage	9V DC
Minimum Temperature	-40°C
Product Type	Power relay
Resistance (coil)	48Ω
Switching current (max.)	120A
Switching voltage (max.)	500V DC
Width	47.7mm
