Omron EE-SX1041 Micro-sensor fork light beam non-contact Switch

MPN: EE-SX1041
Brand: Omron
EAN-13: 2050000802256
Order Code: 05-6428
Country of Origin: Japan

RoHS Compliant
Free UK shipping available

View Full Product Range (15)

Inc VAT

Qty	Unit Price (Ex VAT)
5+	£1.52
10+	£1.28
20+	£1.22

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 1

Despatched within 4 working days - 188 in stock

Product Details
Product Range
Data Sheets
Quick Quote

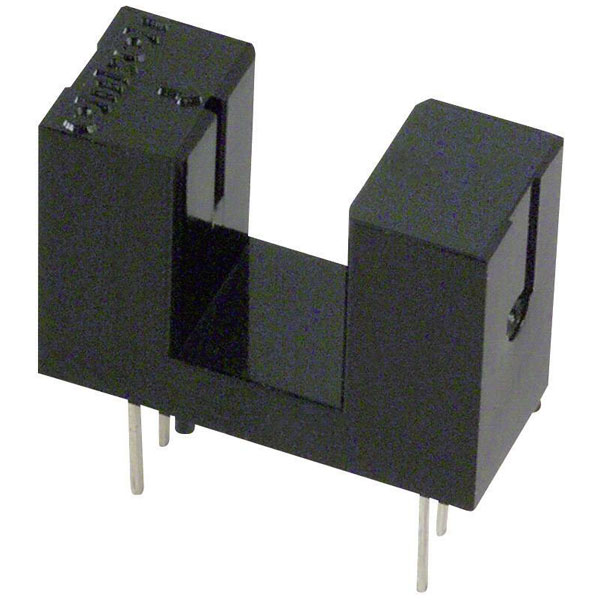

The Omron EE-SX1041 is a compact photo microsensor with a slot type design.

It features a PNP output and an infrared LED for reliable sensing.

This sensor is ideal for detecting objects or edges in automation systems.

Typical applications include use in printers, vending machines, and assembly equipment.

Type	Reflective light barrier
Wavelength	940nm
Max Range	5mm
Operating Voltage	N/A
Outputs	1
Switching Frequency	N/A
Ambient temperature	-25 - +95°C
Automotive Standard	No
Connection	wired
Connector	THT
Dim	(L x W x H) 14 x 6 x 10 mm
Engineering Part No	EESX1041
Engineering Series No	EESX1041
Height	10mm
Length	14mm
Max. temperature	+95°C
Min. temperature	-25°C
Minimum Operating Temperature	25°C
Misc Attribute	Fork light barrier
Mounting Type	Through Hole
Number of Pins	4
Package Type	Pin
Product Type	Slotted Optical Switch
Range	5mm
Series	EE-SX
Shaft Length	940nm
Slot Width	5mm
Standards/Approvals	RoHS
Typical Fall Time	4ns
Typical Rise Time	4µs
Width	6mm
