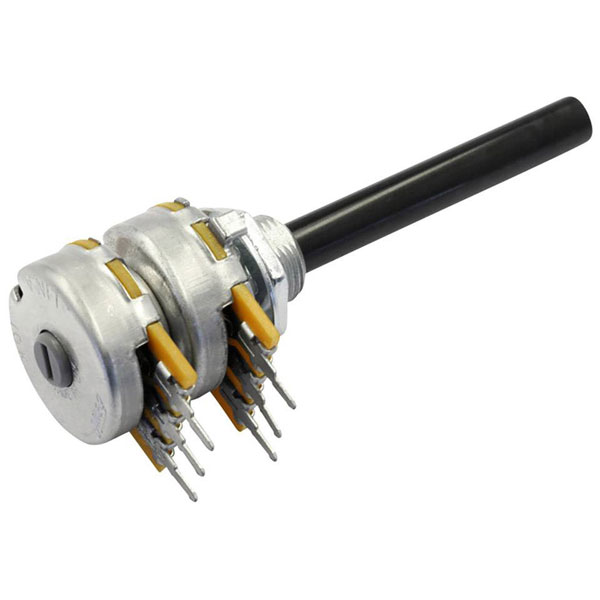

OMEG PC2G20BU Rotary Potentiometer 47 kΩ 0.4 W Single Turn

OMEG PC2G20BU is a high-precision rotary potentiometer designed for applications requiring reliable resistance adjustment in electronic circuits. Featuring a resistance of 47 kO and a power rating of 0.4 watts, this single-turn rotary potentiometer offers a robust and efficient means of controlling electrical parameters. Characterised as a slide potentiometer, it is compact and suitable for stereo audio systems, instrumentation, and control equipment where fine adjustment is crucial. Engineers may utilise this component in circuits that demand precise variable resistance, such as in the tuning of audio amplifiers or in the feedback systems of control electronics. Its design ensures consistent performance and durability in technically demanding environments.

Type	PC2G20BU CEBS F1 L:50 A4,7K
Resistance	47kΩ
Power Rating	0.4W
Axle Diameter	6mm
Axle length	50mm
Connection	Print
Content	1
Maximum Temperature	-25°C
Mechanical Angle	300°
Minimum Temperature	70°C
Output	Stereo
Product Type	Single turn rotary pot
Resistance characteristic	linear
Switching voltage (max.)	500V DC
Thread Length	8mm
Tolerance ±	20%
Torque (max.)	1.5Ncm
