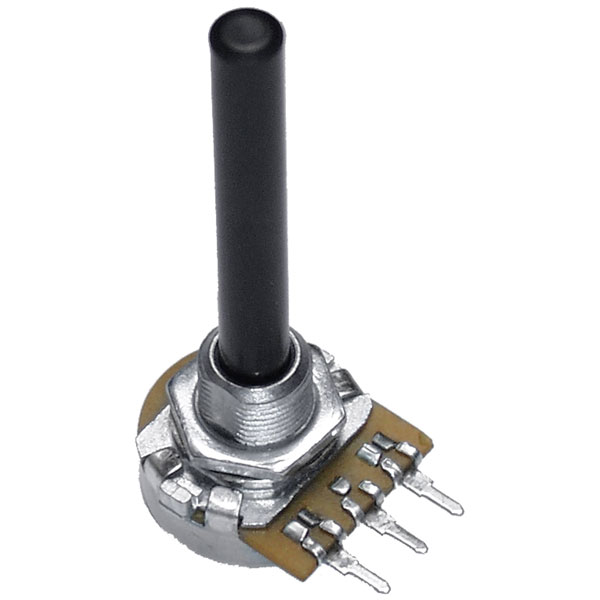

OMEG 9815 Single turn rotary pot 0.2 W 1 kΩ Control Potentiometer

OMEG 9815 single-turn rotary potentiometer offers precise control with a resistance of 1 kO and a power rating of 0.2 watts. This slide potentiometer is designed for applications requiring reliable linear motion control and precise resistance variation, such as in audio equipment volume adjustments, electronic circuit calibration, and laboratory instrumentation. The mono configuration of the OMEG 9815 ensures consistent performance in environments that demand minimal resistance tolerance fluctuation. Its compact design makes it suitable for integration into circuit boards where space is limited, maintaining reliability and accuracy under dynamic operating conditions.

Type	9815
Resistance	1kO
No of Turns	1
Power Rating	0.2W
Axle Diameter	6mm
Content	1
Lever Length	50mm
Mechanical Angle	300°
Output	Mono
Product Type	Single turn rotary pot
Resistance characteristic	logarithmic
Thread Size	M10
