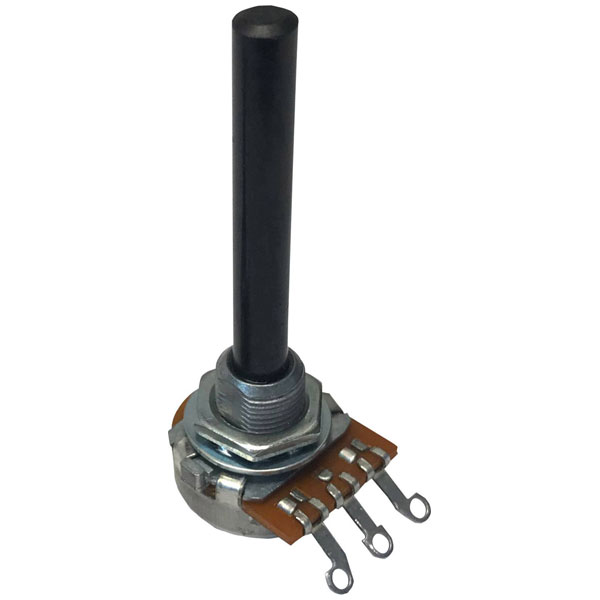

OMEG 10018 Single turn rotary pot Mono 0.4 W 100 kΩ Potentiometer

OMEG 10018 Single turn rotary pot Mono 0.4 W 100 kO Potentiometer is a precision-engineered component ideal for applications requiring reliable and repeatable resistance adjustment. This slide potentiometer features a single-turn operation which provides straightforward and intuitive resistance control with a maximum power rating of 0.4 watts and a nominal resistance value of 100 kiloohms. Its robust design ensures stability and longevity in various electronic circuits, making it suitable for use in audio volume controls, signal processing equipment, and feedback systems. The OMEG 10018 is highly favoured in engineering projects where precise resistance values are essential, offering straightforward integration into existing designs.

Type	10018
Resistance	100kΩ
No of Turns	1
Power Rating	0.4W
Axle Diameter	6mm
Connection	Wire
Content	1
Lever Length	20mm
Mechanical Angle	300°
Output	Mono
Product Type	Single turn rotary pot
Resistance characteristic	linear
Thread Size	M10
