ODU G51M07-P04LJG0-0004 MEDI-SNAP 4-Pin 10A Circular Connector Autoclavable

Standard range

Order Code:

12-5644

Brand: ODU MPN: G51M07-P04LJG0-0004 EAN-13: 2050001135636

RoHS Compliant
Country of Origin: Germany
Free UK shipping available
View Full Product Range (7)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£10.39

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

45 in stock, despatched in 4 working days

Product Details
Product Range
Data Sheets
Quick Quote

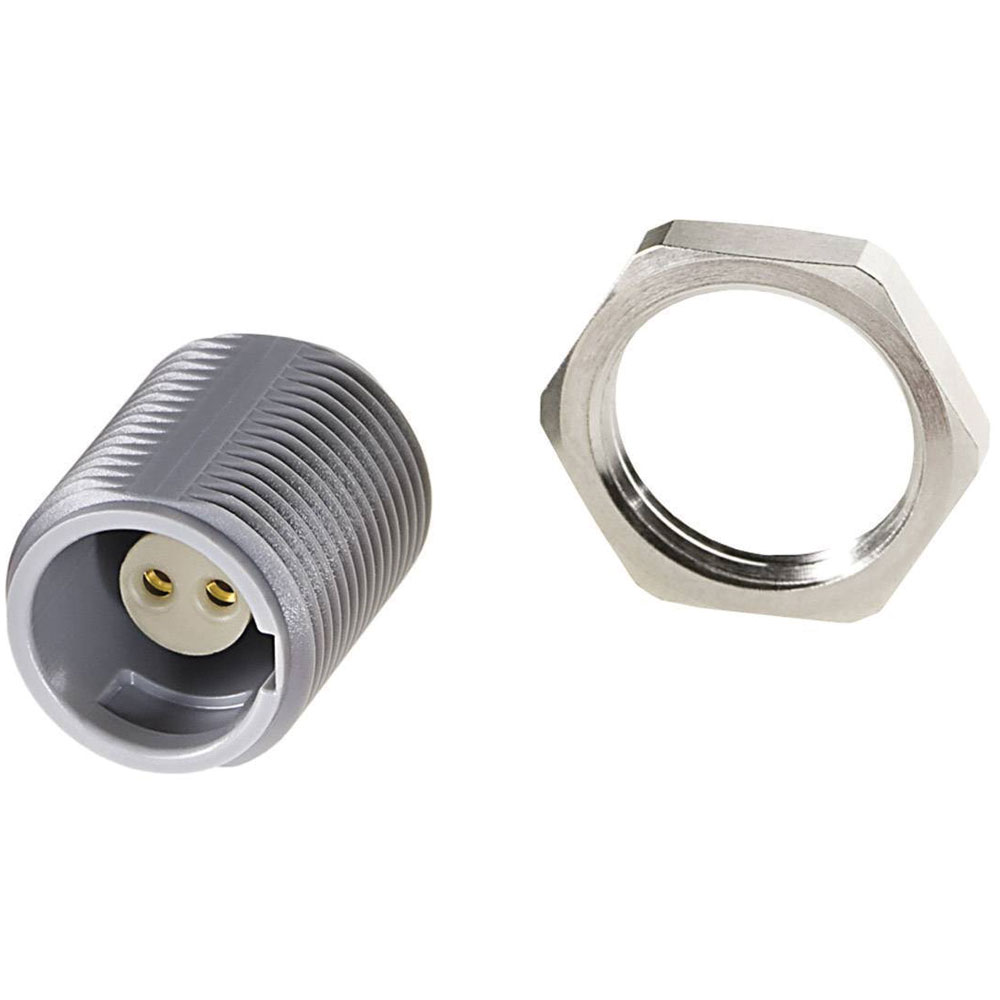

The ODU G51M07-P04LJG0-0004 connector, manufactured by ODU, is a circular connector designed to handle a nominal current of 10 amps with 4 pins. Its robust design and reliable performance make it suitable for demanding medical and industrial applications. This bullet-style connector is ideal where quick and secure connections are essential.

(Ø)	14mm
AWG	22
Case material	PSU (polysulphone)
Connection angle	180°
Connector type	Socket, built-in
Contact material	Brass, nickel and gold plated
Cross section	0.38mm²
Cross-section range	0.38 mm² (max)
Factory colour	Grey
IP rating	IP50
Manufacturer part #	G51M07-P04LJG0-0004
max. cross section	0.38mm²
Misc Attribute	G51M07-P04LJG0-0004
Nominal current	10A
Nominal current - rounded value	10A
Nominal current (details)	10A
Nominal voltage	600V
Nominal voltage (details)	600V
Number of pins	4
Pins	4
RoHS-compliant	Yes
Seal	Plastic push-pull lock
Series	MEDI-SNAP®
Temperature range	-50 to +120°C
Total no. of pins	4
Type	Bullet connector
