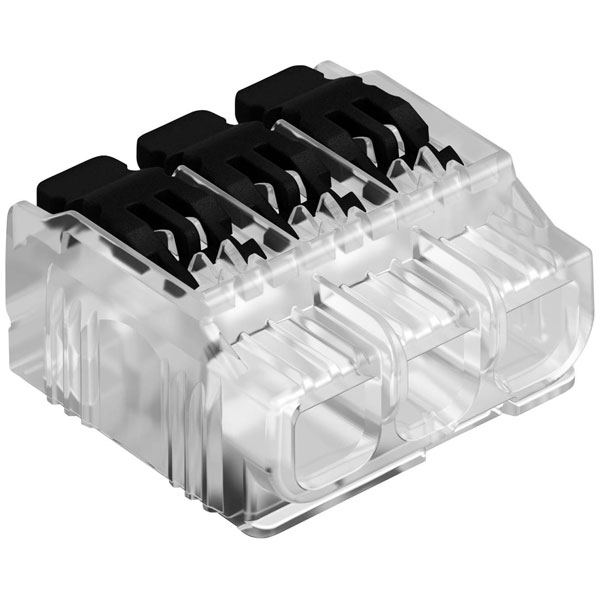

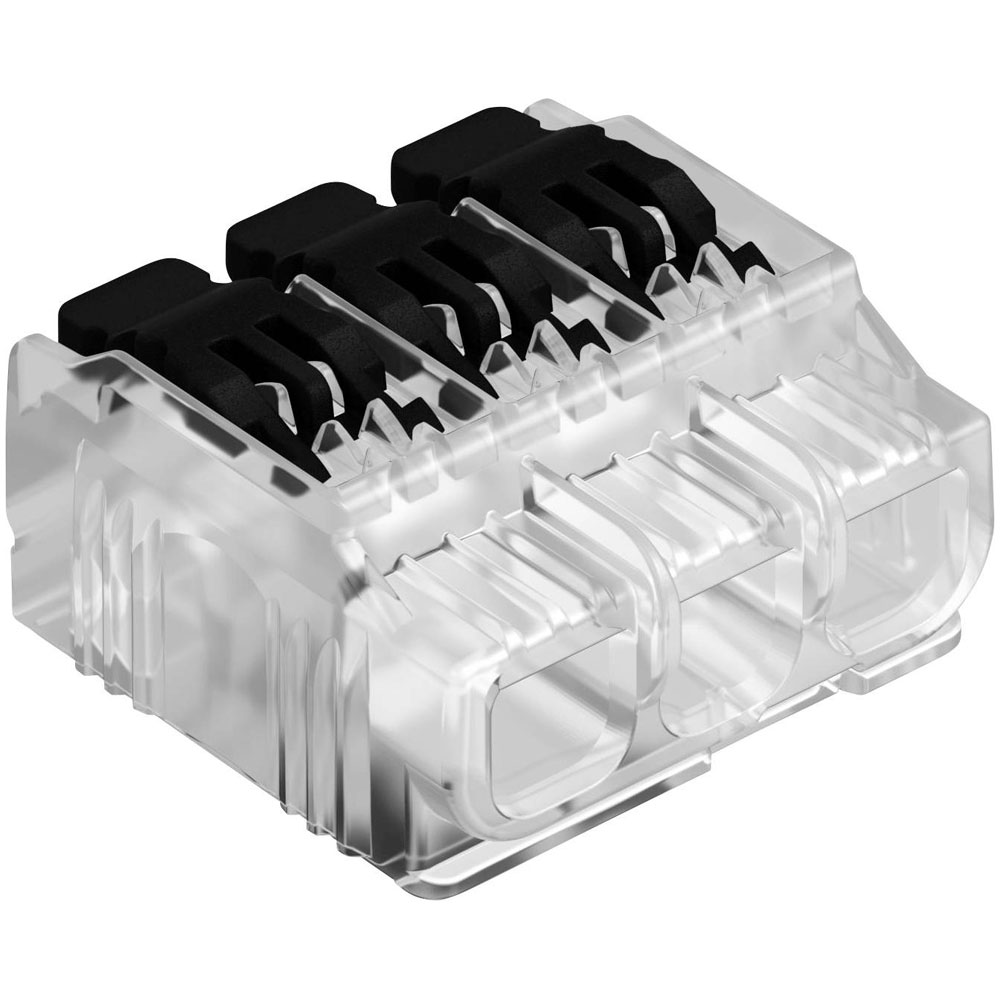

OBO Bettermann 2054423, alternatively described as 3474415, is a technically robust, product designed for versatile electrical applications. This 3-pin connector accommodates flexible wires with cross-sectional areas ranging from 0.02 to 4 mm² and solid wires from 0.02 to 2.5 mm², making it highly adaptable for use in precision wiring environments. The product is typically utilised in control panels, automation systems, and other electrical installations where reliable connectivity and current-carrying capacity are essential. With a package of 75 pieces, it provides engineers with ample units for both small-scale prototyping and large-scale projects, ensuring dependable performance in various demanding applications.
| Colour |
Transparent |
| Type |
Term Block |
| Number of Ways |
3 |
| AWG |
24 - 12 |
| Connection |
Pull spring |
| Connection (type) |
Spring-Loaded Connector |
| Connections |
3 |
| Connector clip features |
Latch |
| Content |
75 |
| Cross section (flexible) (max.) |
4mm² |
| Cross section (flexible) (min.) |
0.02mm² |
| Cross section (inflexible) (max.) |
2.5mm² |
| Cross section (inflexible) (min.) |
0.02mm² |
| Current Rating (A) |
32 |
| Dim |
19.6 x 19.9 x 10.5 mm (L x W x H) |
| Dimensions |
(L x W) 19.6 mm x 19.9 mm |
| Insulation Material |
Thermoplastic |
| Length |
19.6mm |
| Length (mm) |
19.6 mm |
| Material (details) |
Plastic |
| Nominal Current |
32A |
| Nominal Voltage |
450V AC |
| Number of Pins |
3 |
| Product Type |
Terminal Block |
| Stripping length |
9 - 10mm |
| Stripping length (max.) mm |
11-12 mm |
| Temperature Range |
-5 - +85°C |
| Voltage Rating (V, V DC) |
500 V |
| Width |
19.9mm |
| Width (mm) |
19.9 |
| Wire Gauge |
0.2–4 mm² |
