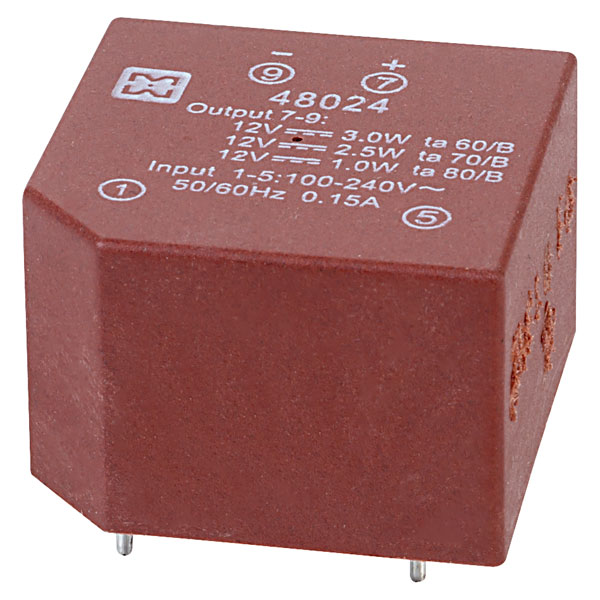

Myrra 48024 3W 12V AC-DC Power Supply Single Output

A 3W, 12V DC power supply from the 48000 series of single output power supplies. The PSUs have a universal AC/DC input range and come in a compact, encapsulated PCB mounting package with the same footprint as the EE20 transformer, allowing you to upgrade your applications without having to redesign your PCBs.

The PSU is primary side regulated and features a very low standby consumption (< 0.15W) and better energy efficiency that meets the requirements of Energy Star and EC Code of Conduct.

• PCB Mounting
• Safety IEC, UL/CUL, CE, VDE, ENEC Mark
• Emissions conform to EN and FCC
• Rated to UL 94-V0

Output Power Max	3W
Output Voltage	12V
Output Current	250mA
Dimensions	25 x 25 x 16mm
Efficiency	72%
Input Voltage	85 to 265V

Technical Specification
