Murrelektronik 7000-46041-8020060 M12 Sensor/Actuator Connector 6-Pin

Order Code:

05-5533

Brand: Murr Elektronik MPN: 7000-46041-8020060

RoHS Compliant
Country of Origin: Germany

Discontinued

Product Details
Data Sheets

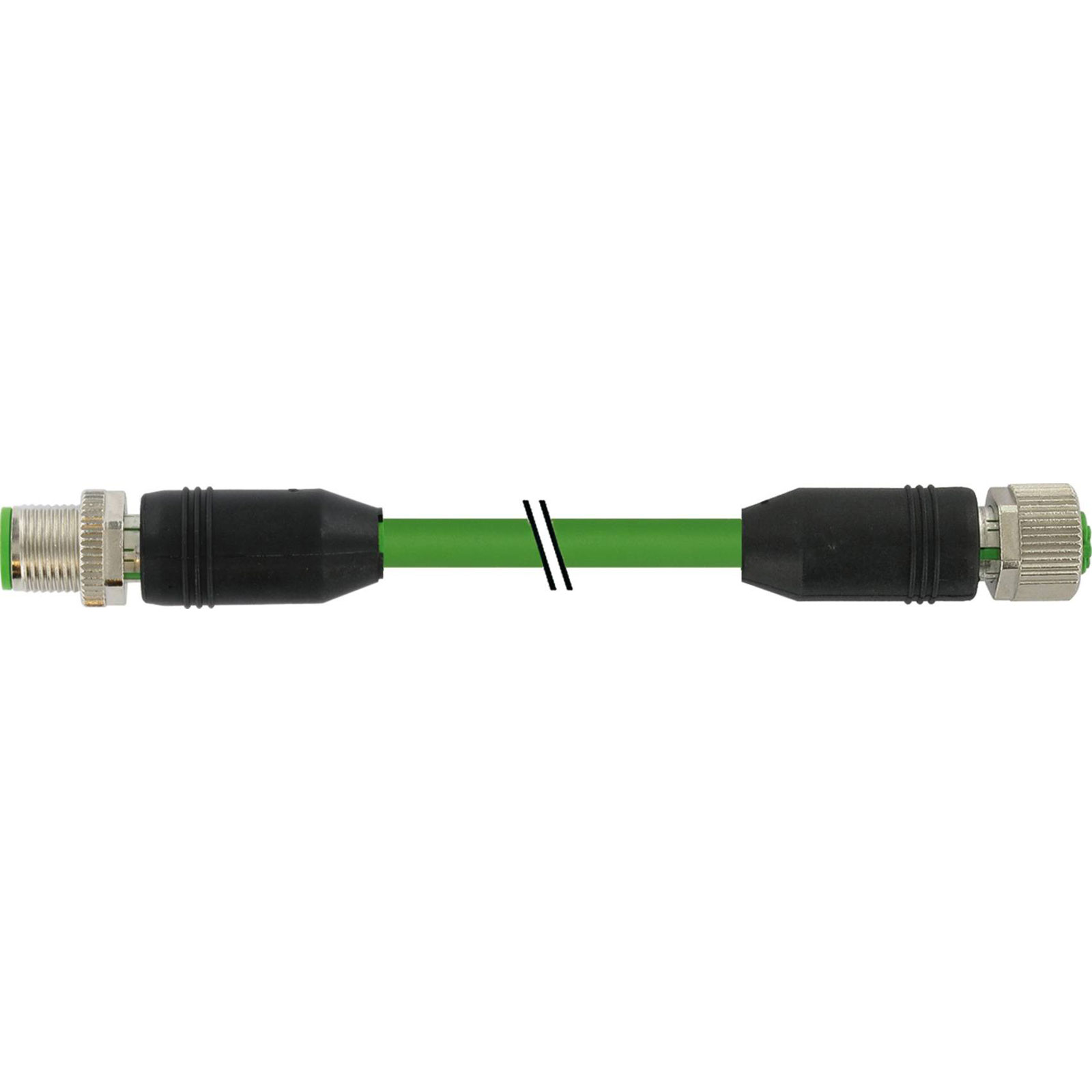

Murrelektronik's sensor/actuator connector, model 7000-46041-8020060, features a straight M12 x 1 plug and socket with a length of 0.60 metres. This pre-fabricated connector has six pins and is designed for precise and efficient connections in industrial automation settings. It is ideal for use in environments requiring reliable sensor and actuator connectivity.

Cable colour	Green
Cable length	0.60m
Cable Ø	7.9mm
Coding	A
Connection side A	M12 plug, straight
Connection side B	M12 socket, straight
Contact material	Copper alloy
Contact surface	Gold plated
Cross-section (sensor/actuator wiring)	0.5mm²
Jacket material	PUR
Manufacturer part #	7000-46041-8020060
Max. temperature	+85°C
Min. temperature	-25°C
Misc Attribute	7000-46041-8020060
No. of pins	6
Nominal current	4A
Nominal current - rounded value	4A
Nominal voltage	300V AC
Outside Ø	6.6mm
RoHS-compliant	Yes
Thread type (wiring and installation)	M12 x 1
Thread type connection side	M12 x 1
Type	Sensor/actuator connector (pre-fab)
