Molex PCB Headers - Female Sockets Built-in pin strip (standard) 608983

Molex Brand: Molex
The Molex micro-fit vertical headers are electrical connectors characterized by their compact design, pin variability, and 3mm pitch size, commonly used in electronic assemblies.
Description Image Product Buy Pricing (Ex VAT) No. of Ways Circuits loaded Circuits maximum Comments Connection Delivery unit Engineering number Engineering Part No Engineering Series Name Engineering Series No Lead free process capability Minimum line quantity Misc Attribute Net weight Packaging Type Primary pack qty Product number display Product number hyphen Product number sap Termination interface style

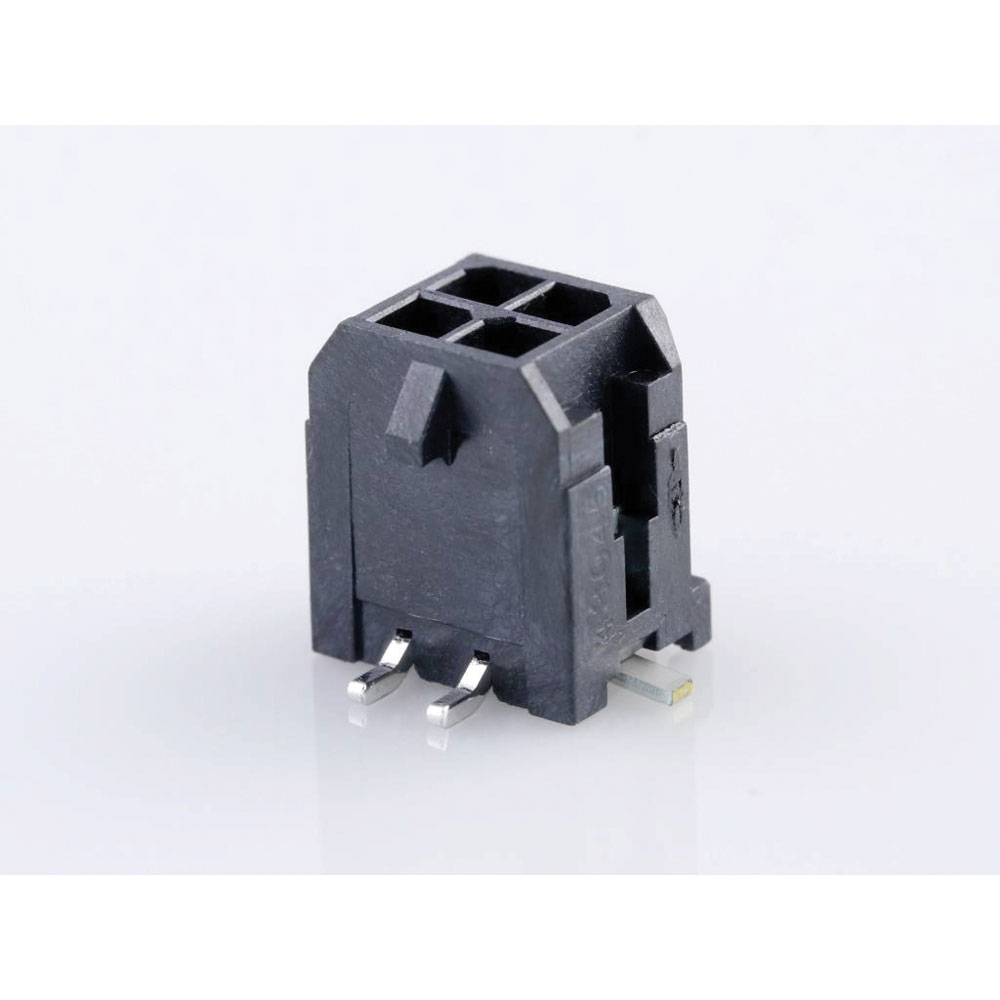

Molex 430450418 Micro-fit Vertical Header 4 Pins 3mm Pitch Black
Molex 430450418 Micro-fit Vertical Header 4 Pins 3mm Pitch Black
Standard range
Order code: 05-3661
MPN: 430450418

1,736 in stock, despatched in 4 working days
3+ £1.65
100+ £1.34
375+ £1.28
1500+ £1.25
3000+ £1.18
Price per unit Ex VAT 		4 4 4 High Temperature, Square Pin, Solder Type; This Molex product is manufactured from material that has the following ratings, tested by independent agencies: a) A Glow Wire Ignition Temperature (GWIT) of at least 775 deg C per IEC 60695-2-13. b) A Glow Wire Flammability Index (GWFI) above 850 deg C per IEC 60695-2-12 and hence complies with the requirements set out in the International Standard IEC 60335-1 5th edition - household and similar electrical appliances - safety, section 30 Resistance to heat and fire. The customers using this product must determine its suitability for use in their particular application through testing or other acceptable means as described in end-product glow-wire flammability test standard IEC 60695-2-11 and any applicable product end-use standard(s). If it is determined during the customers evaluation of suitability, that higher performance is required, please contact Molex for possible product options. SMT 1800 43045-0418 REFLOW 1800 MOL Power & Signal Sol. 0.973/g Tape on Full reel 200 430450418 43045-0418 0430450418 Surface Mount
Molex 430450612 Micro-fit Vertical Header 3mm Pitch 6 Pins Black
Molex 430450612 Micro-fit Vertical Header 3mm Pitch 6 Pins Black
Standard range
Order code: 05-3666
MPN: 430450612

438 in stock, despatched in 4 working days
5+ £0.842
100+ £0.834
375+ £0.825
Price per unit Ex VAT 		6 6 6 High Temperature, Square Pin, Offset Through Hole Mounting, Solder Type; This Molex product is manufactured from material that has the following ratings, tested by independent agencies: a) A Glow Wire Ignition Temperature (GWIT) of at least 775 deg C per IEC 60695-2-13. b) A Glow Wire Flammability Index (GWFI) above 850 deg C per IEC 60695-2-12 and hence complies with the requirements set out in the International Standard IEC 60335-1 5th edition - household and similar electrical appliances - safety, section 30 Resistance to heat and fire. The customers using this product must determine its suitability for use in their particular application through testing or other acceptable means as described in end-product glow-wire flammability test standard IEC 60695-2-11 and any applicable product end-use standard(s). If it is determined during the customers evaluation of suitability, that higher performance is required, please contact Molex for possible product options. Print 1728 43045-0612 43045-0612 MICRO-FIT HDR ASSY 43045 SMC&WAVE 3456 Molex MOL Power & Signal Sol. 0.980/g Tray 144 430450612 43045-0612 0430450612 Through Hole - Kinked Pin
