Molex 430450418 Micro-fit Vertical Header 4 Pins 3mm Pitch Black

Molex
Standard range
Order Code:

05-3661

Brand: Molex MPN: 430450418
Qty Unit Price (Ex VAT)
1+ £2.27
100+ £1.81
375+ £1.74
1500+ £1.67
3000+ £1.60
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1,786 in stock, despatched in 4 working days

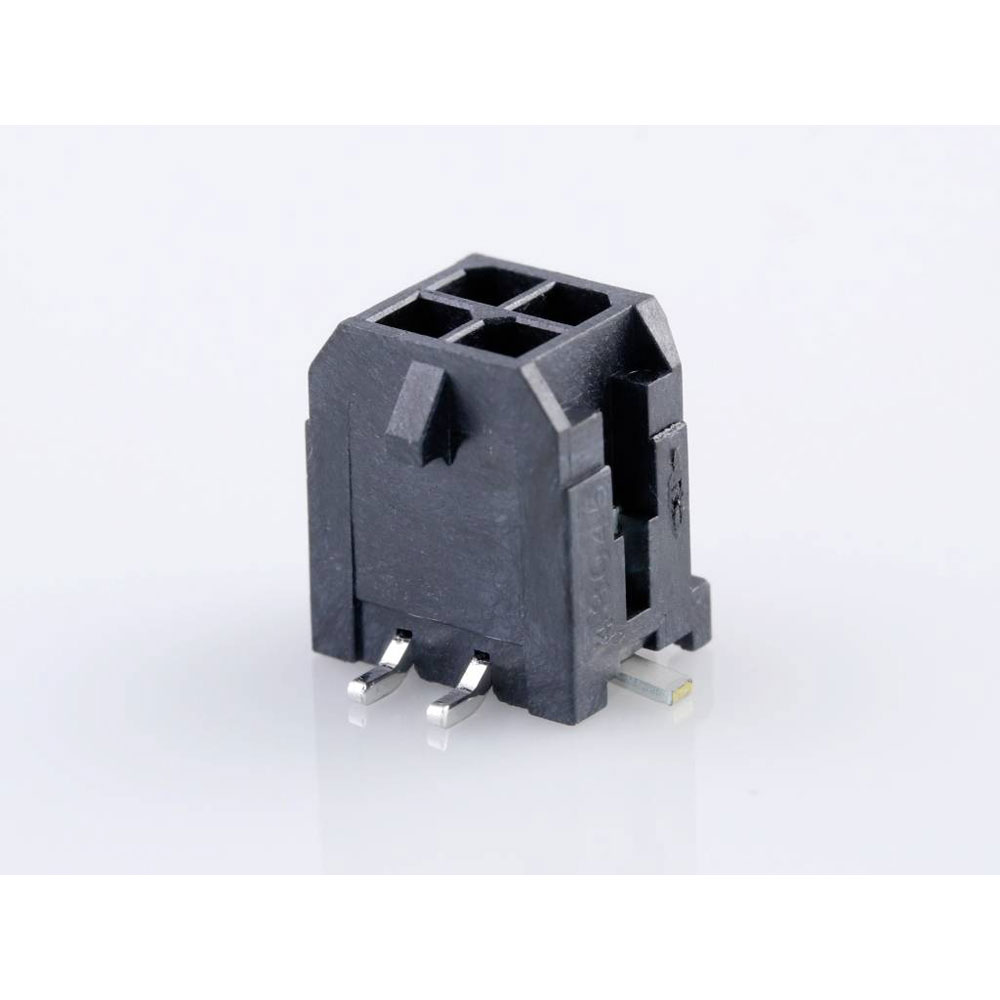

The Molex 430450418 built-in pin strip features four pins with a 3 mm contact spacing, supplied on a full reel. This standard pin strip is commonly used in electronic and electrical connectors for secure and reliable connections. It is suitable for various applications, including circuit board assemblies and prototype development.
No. of rows 2
Board contact surface Tin
Case material High temperature resistant thermoplastic
Connection SMT
Connector coating thickness 0.254µm
Connector contact surface Tin
Connector orientation Perpendicular (to the PCB)
Contact material Brass
CS 3mm
Factory colour Black
Manufacturer part # 430450418
Max. temperature +105°C
Min. temperature -40°C
Misc Attribute MOL Power & Signal Sol.
Nominal current 8.5A
Nominal current - rounded value 8.5A
Nominal voltage 600V
Packaging type Tape on Full reel
RoHS-compliant Yes
Total number of pins 4
Type Built-in pin strip (standard)
