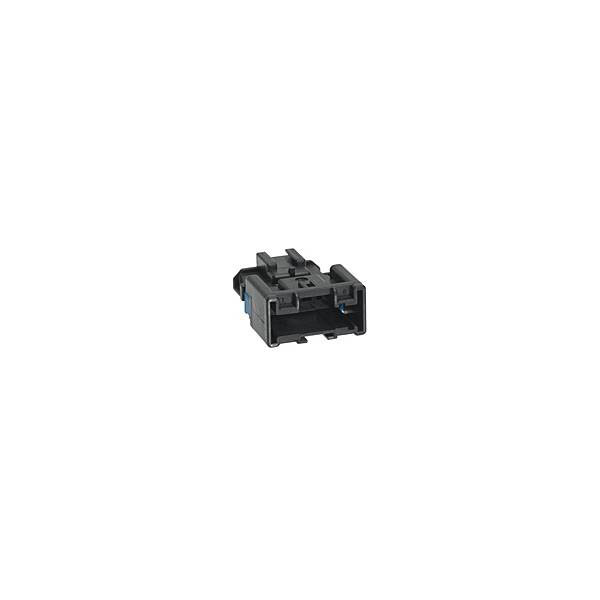

The Molex 988251061 socket housing cable, manufactured by Molex, features a total of 6 pins with contact spacing options of 3.33 mm, 4.2 mm, and 5 mm. This socket housing is typically used for secure and efficient electrical connections in a variety of electronic devices. Its modular design and versatility make it suitable for both consumer electronics and industrial applications.
| Type |
Socket housing cable |
| Pitch |
3.33mm |
| Number of Ways |
6 |
| Number of Rows |
1 |
| Mounting Type |
Cable mount |
| Mounting Direction |
Straight |
| Application |
Power, Wire-to-Wire |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| Case Material |
Polyester |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Circuits detail |
4 x 1.5 + 2 x 2.8 |
| Circuits maximum |
6 |
| Color resin |
Black |
| Colour |
Black |
| Connector Type |
Plug |
| Delivery unit |
756 |
| Design registration eligibility |
true |
| ELV status |
Compliant per 2000/53/EC |
| Engineering number |
08311EV6F1 |
| Engineering Part No |
08311EV6F1 |
| Engineering Series Name |
Pin Con 1.5&2.8 |
| Engineering Series No |
98825 |
| First published date |
2008-04-09 |
| G a d s l/ i m d s |
Compliant |
| Gender |
Plug |
| Glow wire capable |
No |
| H f l h status |
Low-Halogen per IEC 61249-2-21 |
| Keying to mating part |
Yes |
| Lock to mating part |
Yes |
| Material resin |
Polyester |
| Material type |
Finished Goods |
| Maximum Temperature |
+85°C |
| Min. temperature |
-40°C |
| Minimum line quantity |
3780 |
| Misc Attribute |
Molex MOL Automotive |
| Net weight |
8.435/g |
| Packaging Type |
Bag |
| Panel mount |
No |
| Pitch termination interface |
3.33mm, 4.20mm, 5.00mm |
| Polarized to mating part |
Yes |
| Ports |
1 |
| Primary pack qty |
126 |
| Product name |
NSCC |
| Product number display |
988251061 |
| Product number hyphen |
98825-1061 |
| Product number sap |
0988251061 |
| Reach status |
Not Contained per D(2025)7771-DC (04 Feb 2026) |
| Reference series |
98825 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
True |
| Stackable |
No |
| Taxonomy |
Connector Housings |
| Temperature range operating |
-40° to +85°C |
| Upc |
822348817283 |
