Molex 901200762 C-grid Iii Pin Strip 2.54mm Pitch 2 Circuits Gold Plating

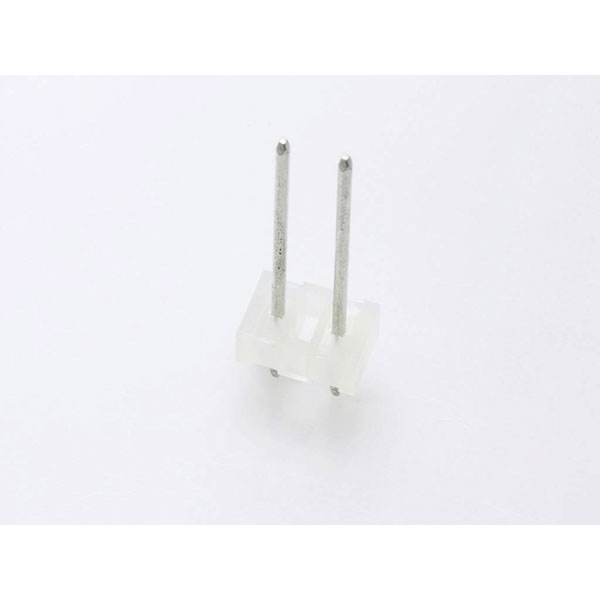

Image Representative of Range

Molex 901200762 C-grid Iii Pin Strip 2.54mm Pitch 2 Circuits Gold Plating

Molex
Order Code:

05-4389

Brand: Molex MPN: 901200762 EAN-13: 2050007131861
Qty Unit Price (Ex VAT)
20+ £0.332
125+ £0.306
500+ £0.294
2500+ £0.239
5000+ £0.232
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
8,786 in stock, despatched in 4 working days

The Molex pin strip, model number 901200762, features a single row design. Manufactured by Molex, this standard pin strip is ideal for use in electronic circuit assemblies and prototyping. It is typically packaged in trays and facilitates secure electrical connections.
Type Pin strip (standard)
Number of Positions 2
Pitch 2.54mm
Number of Rows 1
Application Signal, Wire-to-Board
Base unit of measure PC
Base unit of measure desc piece
Board contact surface Ni
Breakaway Yes
Case Material Polyester
China ro h s status Compliant per SJ/T 11365-2006
Circuits loaded 2
Circuits maximum 2
Color resin Black
Colour Black
Component type PCB Header
Connection Soldering
Connector coating thickness 0.381µm
Connector contact surface Gold
Connector orientation Perpendicular (to the PCB)
Contact Material Brass
Cross Section 2.54mm
Csa LR19980
Current maximum per contact 3.0A
Delivery unit 6000
Design registration eligibility true
Durability mating cycles max 200
Duration at max process temperature seconds 5
Elv status Not Relevant
Engineering number 901200762
Engineering Series Name SR HDR VERT
Engineering Series No 90120
First mate last break No
First published date 2007-06-05
Flammability 94V-0
G a d s l/ i m d s Compliant with Exemption 44; 34; 33
Glow wire capable No
Guide to mating part No
H f l h status Not Low-Halogen per IEC 61249-2-21
Keying to mating part No
Lead free process capability WAVE
Leading Contact (Pe) No
Lock to mating part No
Material metal Brass
Material plating mating Gold
Material plating termination Nickel
Material resin Polyester
Material type Finished Goods
Mating cycles 200
Max cycles at max process temperature 1
Max. temperature +125°C
Min. temperature -55°C
Minimum line quantity 6000
Misc Attribute Molex MOL Power & Signal Sol.
Net weight 0.119/g
Nominal Current 3A
Nominal Voltage 350V DC/AC
Orientation Vertical
Packaging Type Tray
Pc tail length 2.90mm
Pcb locator No
Pcb retention No
Pcb thickness recommended 1.60mm
Pin Length 2.9mm
Pitch mating interface 2.54mm
Pitch termination interface 2.54mm
Plating min mating 0.381µm
Polarized to mating part No
Polarized to pcb No
Primary pack qty 2000
Process temperature max c 230
Product name C-Grid III
Product number display 901200762
Product number hyphen 90120-0762
Product number sap 0901200762
Range of uses Signal, cable to PCB
Reach status Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series 90120
Ro h s status Compliant per EU 2015/863
Sampleable False
Shrouded No
Stackable No
Taxonomy PCB Headers and Receptacles
Temperature range operating -55° to +125°C
Termination interface style Through Hole
Ul E29179
Upc 800753716520
Voltage maximum 350V AC/DC
