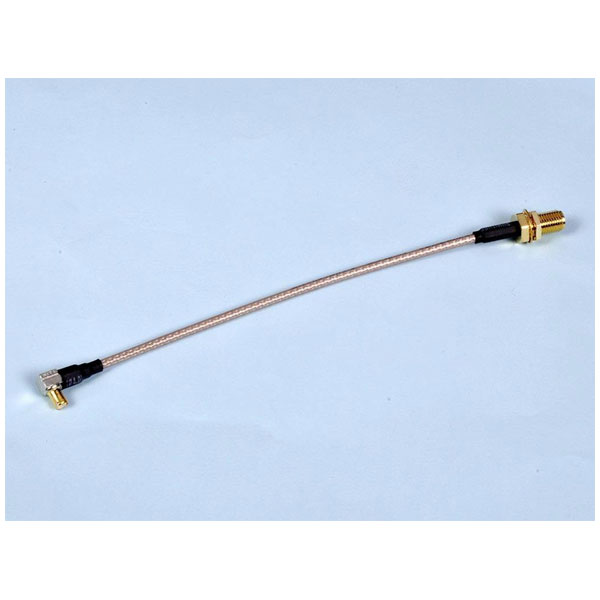

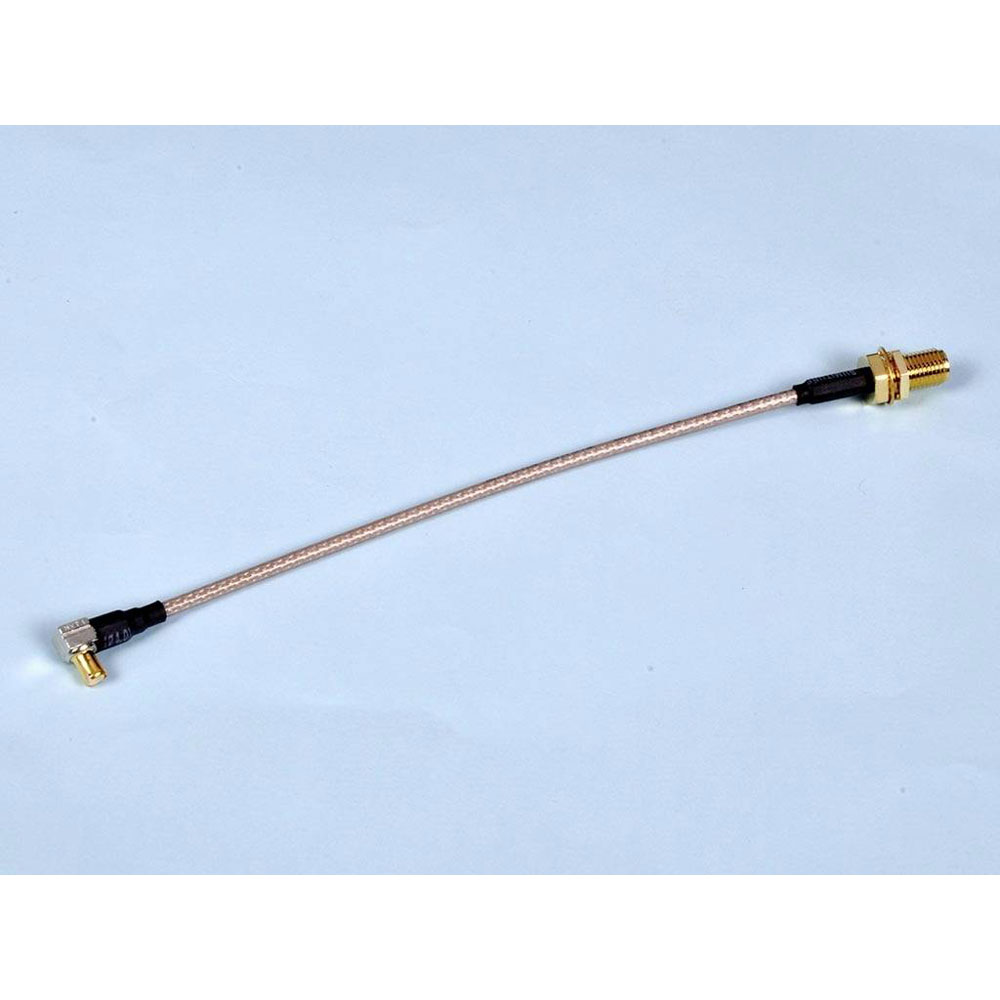

The Molex 897616770 is an SMA connector socket designed for high-frequency applications, providing a reliable 50 O impedance. As a coaxial connector, it is often used in radio transmitters and antenna connections. It comes in a single piece per bag, making it suitable for precision electronic projects.
| Type |
SMA connector |
| Impedance |
50O |
| Mounting Direction |
Right angle |
| Application |
RF |
| Assembly configuration |
Dual Ended Connectors |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| Cable category |
RG 316 |
| Cable Length |
152.40mm |
| China ro h s status |
Not Relevant |
| Connector to connector |
SMA-to-MCX |
| Delivery unit |
500 |
| Design registration eligibility |
true |
| ELV status |
Not Relevant |
| Engineering number |
897616770 |
| Engineering Series Name |
RF/Coax Assemblies |
| Engineering Series No |
89761 |
| First published date |
2013-09-20 |
| Frequency |
6 GHz |
| G a d s l/ i m d s |
Not Relevant |
| Gender |
Jack/Plug |
| H f l h status |
Not Relevant |
| Material metal |
Brass, Zinc |
| Material plating mating |
Nickel, Gold |
| Material resin |
PTFE |
| Material type |
Finished Goods |
| Minimum line quantity |
500 |
| Misc Attribute |
Molex MOL DataCom & Specialty |
| Net weight |
6.350/g |
| Packaging Type |
Bag |
| Primary pack qty |
1 |
| Product name |
MMCX,SMA |
| Product number display |
897616770 |
| Product number hyphen |
89761-6770 |
| Product number sap |
0897616770 |
| Prop risk status |
Cancer, Developmental toxicity, Reproductive toxicity |
| Prop sub status |
Lead compounds |
| Reach status |
Contains Lead per D(2023)3788-DC (14 Jun 2023) SCIP:75947424-1ac8-467b-b091-eab976972120 |
| Reference series |
89761 |
| Ro h s status |
Compliant with Exemption 6(c) per EU 2015/863 |
| Sampleable |
False |
| Singleended |
No |
| Taxonomy |
RF Cable Assemblies |
| Upc |
883906707538 |
| Wire cable type |
RG-316 |
