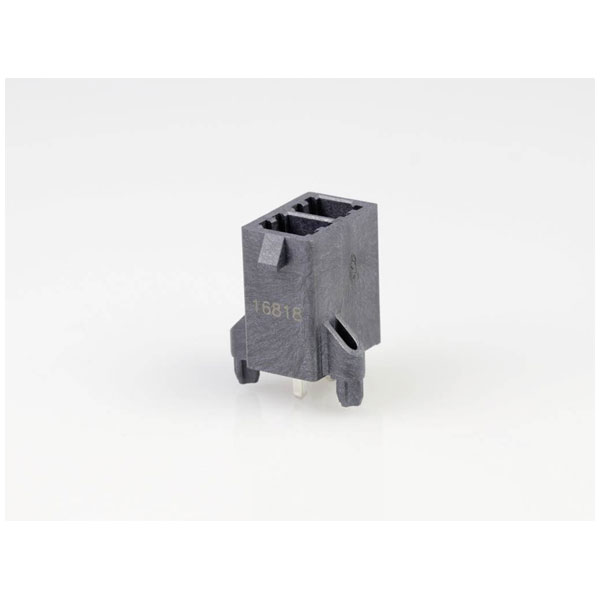

The Molex 768290002 is a built-in pin strip with 2 pins and a contact spacing of 5.7 mm. Designed for reliable electrical connections, this standard part is suitable for various electronic applications. Manufactured by Molex, it is packaged in a tray for convenient handling.
| Pitch |
5.7mm |
| No. of Rows |
1 |
| No. of Ways |
2 |
| Application |
Power, Wire-to-Board |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| Board contact surface |
Tin |
| Breakaway |
No |
| Case Material |
Liquid crystal polymer |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Circuits loaded |
2 |
| Circuits maximum |
2 |
| Coating thickness (PCB side) |
1.524µm |
| Color resin |
Black |
| Component type |
PCB Header |
| Connection |
Soldering |
| Connector coating thickness |
1.524µm |
| Connector contact surface |
Tin |
| Connector orientation |
Perpendicular (to the PCB) |
| Contact Finish |
Copper |
| CS |
5.7mm |
| Csa |
LR19980 |
| Current maximum per contact |
23.0A |
| Delivery unit |
1520 |
| Design registration eligibility |
true |
| Durability mating cycles max |
25 |
| Duration at max process temperature seconds |
30 |
| ELV status |
Not Relevant |
| Engineering number |
76829-0002 |
| Engineering Part No |
76829-0002 |
| Engineering Series Name |
MegaFit Vt Hdr Tin |
| Engineering Series No |
76829 |
| Factory colour |
Black |
| First mate last break |
No |
| First published date |
2013-11-11 |
| G a d s l/ i m d s |
Compliant with Exemption 44; 33 |
| Glow wire capable |
Yes |
| H f l h status |
Low-Halogen per IEC 61249-2-21 |
| Keying to mating part |
Yes |
| Lead free process capability |
SMC&WAVE |
| Lock to mating part |
Yes |
| Mated height |
16.78mm |
| Material metal |
High Conductivity Copper |
| Material plating mating |
Matte Tin |
| Material plating termination |
Matte Tin |
| Material resin |
Liquid Crystal Polymer |
| Material type |
Finished Goods |
| Max cycles at max process temperature |
1 |
| Max. temperature |
+105°C |
| Min. temperature |
-40°C |
| Minimum line quantity |
3040 |
| Misc Attribute |
Molex MOL Power & Signal Sol. |
| Net weight |
1.808/g |
| Nominal Current |
23.5A |
| Nominal current - rounded value |
23.5A |
| Nominal Voltage |
600V DC/AC |
| Number of Rows |
2 |
| Orientation |
Vertical |
| Packaging Type |
Tray |
| Pc tail length |
3.73mm |
| Pcb locator |
Yes |
| Pcb retention |
Yes |
| Pcb thickness recommended |
1.58mm, 2.36mm |
| Pitch mating interface |
5.70mm |
| Pitch termination interface |
5.70mm |
| Plating min mating |
1.520µm |
| Plating min termination |
1.520µm |
| Polarized to mating part |
Yes |
| Polarized to pcb |
Yes |
| Primary pack qty |
95 |
| Process temperature max c |
260 |
| Product name |
Mega-Fit |
| Product number display |
768290002 |
| Product number hyphen |
76829-0002 |
| Product number sap |
0768290002 |
| Reach status |
Not Contained per D(2025)7771-DC (04 Feb 2026) |
| Reference series |
76829 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
True |
| Shrouded |
Yes |
| Taxonomy |
PCB Headers and Receptacles |
| Temperature range operating |
-40° to +105°C |
| Termination interface style |
Through Hole |
| Type |
Built-in pin strip (standard) |
| Ul |
E29179 |
| Unmated height |
14.80mm |
| Upc |
887191454184 |
| Voltage maximum |
600V AC (RMS)/DC |
