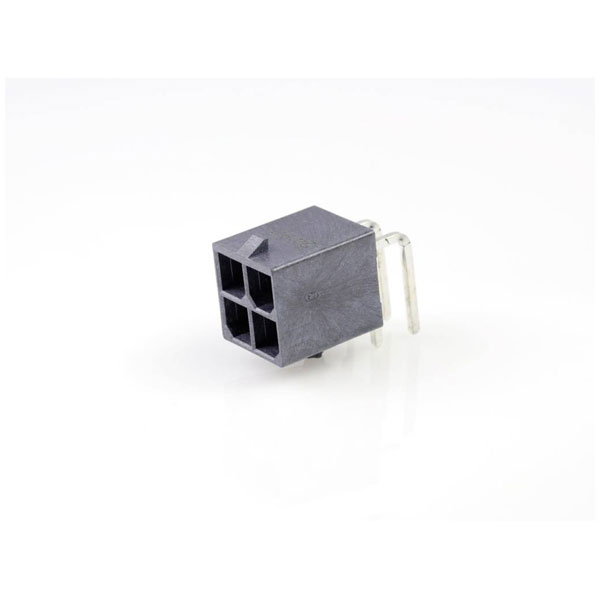

Molex manufactures the 768250004 built-in pin strip, featuring four pins with 5.7 mm contact spacing. This component is primarily used for reliable electronic connections in circuit boards and other electronics projects. It is ideal for use in various industrial and consumer applications where stable signal transmission is required.
| Pitch |
5.7mm |
| No. of Rows |
2 |
| No. of Ways |
4 |
| Application |
Power, Wire-to-Board |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| Board contact surface |
Tin |
| Breakaway |
No |
| Case Material |
High temperature resistant thermoplastic |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Circuits loaded |
4 |
| Circuits maximum |
4 |
| Coating thickness (PCB side) |
1.27µm |
| Color resin |
Black |
| Component type |
PCB Header |
| Connection |
Soldering |
| Connector coating thickness |
1.524µm |
| Connector contact surface |
Tin |
| Connector orientation |
Parallel (to the PCB) |
| Contact Finish |
Copper |
| CS |
5.7mm |
| Csa |
LR19980 |
| Current maximum per contact |
23.0A |
| Delivery unit |
1250 |
| Design registration eligibility |
true |
| Durability mating cycles max |
25 |
| Duration at max process temperature seconds |
30 |
| ELV status |
Not Relevant |
| Engineering number |
76825-0004 |
| Engineering Part No |
76825-0004 |
| Engineering Series Name |
MegaFit RA Hdr Tin |
| Engineering Series No |
76825 |
| Factory colour |
Black |
| First mate last break |
No |
| First published date |
2013-11-11 |
| G a d s l/ i m d s |
Compliant with Exemption 44; 33 |
| Glow wire capable |
Yes |
| H f l h status |
Low-Halogen per IEC 61249-2-21 |
| Keying to mating part |
Yes |
| Lead free process capability |
SMC&WAVE |
| Lock to mating part |
Yes |
| Mated height |
16.78mm |
| Material metal |
High Conductivity Copper |
| Material plating mating |
Matte Tin |
| Material plating termination |
Matte Tin |
| Material resin |
Liquid Crystal Polymer |
| Material type |
Finished Goods |
| Max cycles at max process temperature |
1 |
| Maximum Temperature |
+105°C |
| Min. temperature |
-40°C |
| Minimum line quantity |
1250 |
| Misc Attribute |
Molex MOL Power & Signal Sol. |
| Net weight |
2.836/g |
| Nominal Current |
23.5A |
| Nominal current - rounded value |
23.5A |
| Nominal Voltage |
600V |
| Number of Rows |
2 |
| Orientation |
Right Angle |
| Packaging Type |
Tray |
| Pc tail length |
3.60mm |
| Pcb locator |
Yes |
| Pcb retention |
Yes |
| Pcb thickness recommended |
1.58mm, 2.36mm |
| Pitch mating interface |
5.70mm |
| Pitch termination interface |
5.70mm |
| Plating min mating |
1.524µm |
| Plating min termination |
1.524µm |
| Polarized to mating part |
Yes |
| Polarized to pcb |
Yes |
| Primary pack qty |
125 |
| Process temperature max c |
260 |
| Product name |
Mega-Fit |
| Product number display |
768250004 |
| Product number hyphen |
76825-0004 |
| Product number sap |
0768250004 |
| Reach status |
Not Contained per D(2025)7771-DC (04 Feb 2026) |
| Reference series |
76825 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
True |
| Shrouded |
Yes |
| Taxonomy |
PCB Headers and Receptacles |
| Temperature range operating |
-40° to +105°C |
| Termination interface style |
Through Hole |
| Type |
Built-in pin strip (standard) |
| Ul |
E29179 |
| Unmated height |
14.53mm |
| Upc |
887191453842 |
| Voltage maximum |
600V AC (RMS)/DC |
