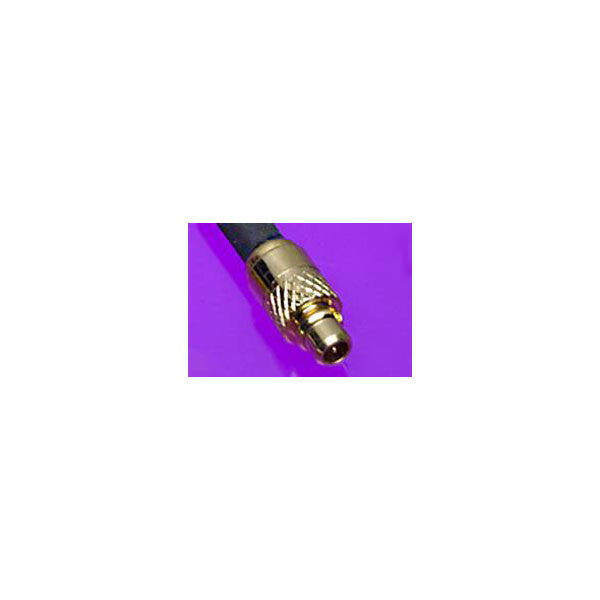

The Molex 734151252 MMCX connector is a high-frequency, 50 O coaxial plug designed for reliable connectivity. It is typically used in wireless communication devices and antenna systems for compact and robust signal transmission. This product is ideal for applications requiring miniature connectors, such as portable electronic equipment.
| Type |
MMCX connector |
| Impedance |
50Ω |
| Mounting Direction |
Inline |
| Application |
RF |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| Cable attachment |
Crimp |
| China ro h s status |
50 Image per SJ/T 11365-2006 |
| Connector Type |
Plug |
| Delivery unit |
500 |
| Design registration eligibility |
true |
| ELV status |
Not Relevant |
| Engineering number |
734151252 |
| Engineering Series Name |
MCX/MMCX |
| Engineering Series No |
73415 |
| First published date |
2013-11-14 |
| Frequency |
6 GHz |
| G a d s l/ i m d s |
Not Relevant |
| Gender |
Plug |
| H f l h status |
Low-Halogen per IEC 61249-2-21 |
| Material type |
Finished Goods |
| Max. frequency |
6GHz |
| Minimum line quantity |
500 |
| Misc Attribute |
Molex MOL DataCom & Specialty |
| Net weight |
0.830/g |
| Orientation |
Straight |
| Packaging Type |
Bag |
| Panel mount |
No |
| Power voltage |
VOLTAGE: 170 Vrms@Sea Level |
| Primary pack qty |
1 |
| Product name |
MMCX |
| Product number display |
734151252 |
| Product number hyphen |
73415-1252 |
| Product number sap |
0734151252 |
| Prop risk status |
Cancer, Developmental toxicity, Reproductive toxicity |
| Prop sub status |
Lead compounds |
| Reach status |
Contains Lead per D(2025)4165-DC (25 June 2025) |
| Reference series |
73414 |
| Reverse polar |
No |
| Ro h s status |
Compliant with Exemption 6(c) per EU 2015/863 |
| Sampleable |
False |
| Style |
Cable |
| Taxonomy |
RF / Coaxial Connectors |
| Upc |
884982653443 |
| Wire cable type |
LMR-100, RG-174, RG-188, RG-316 |
