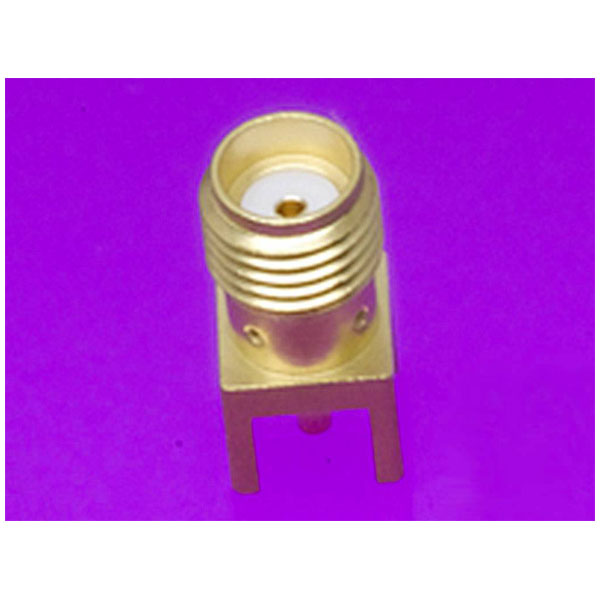

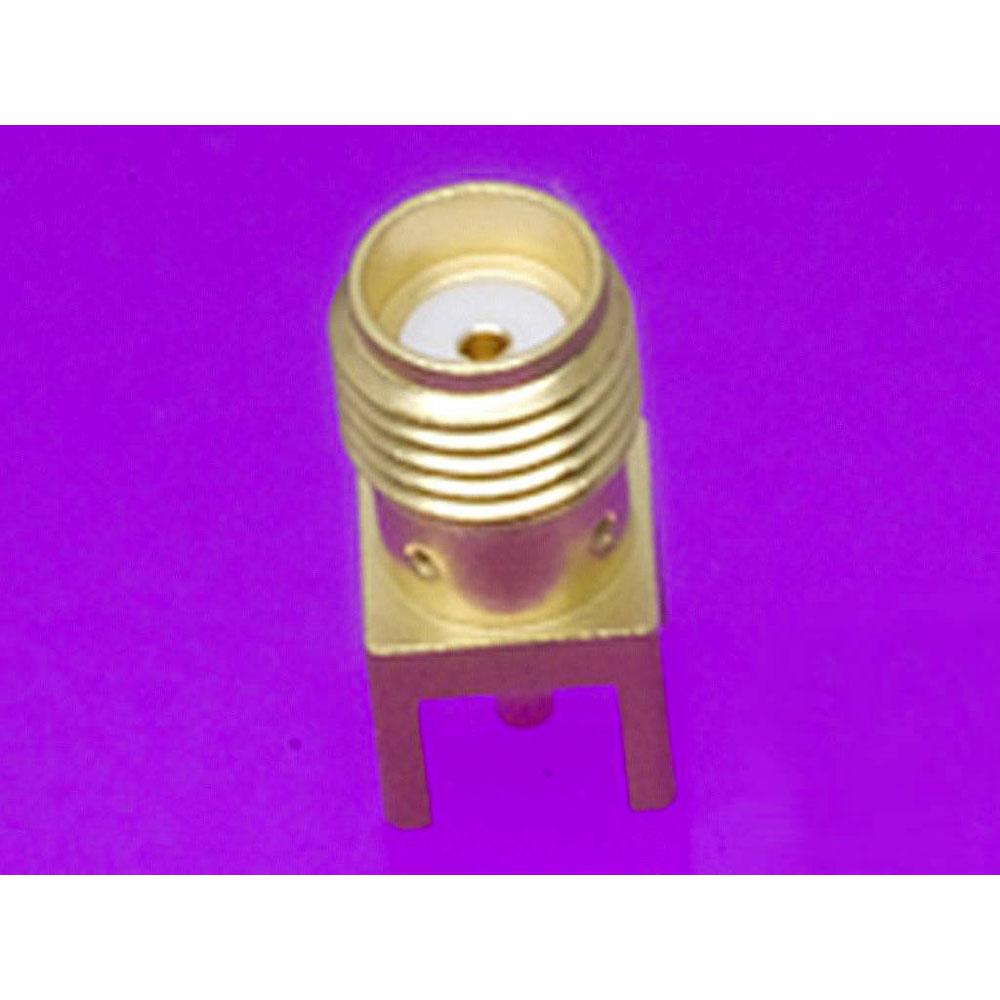

Molex 733910070 SMA Connector Socket 50 Ω Vertical PCB Jack Receptacle

The Molex 733910070 is an SMA connector socket with a 50 O impedance, designed for high-frequency applications. It is ideal for use in coaxial and RF communication systems. Typically utilised in antenna connections and RF equipment, this part ensures reliable signal integrity.

Type	SMA connector
Impedance	50O
Mounting Direction	Vertical
Application	RF
Base unit of measure	PC
Base unit of measure desc	piece
Cable Type	N/A (PCB Mount)
China ro h s status	50 Image per SJ/T 11365-2006
Connector Type	Socket
Contact Termination	Soldering
Delivery unit	3200
Design registration eligibility	true
Duration at max process temperature seconds	10
ELV status	Not Relevant
Engineering number	73391-0070
Engineering Part No	73391-0070
Engineering Series Name	50 OHM SMA(J)STR PLG
Engineering Series No	73391
First published date	2007-05-04
Frequency	18 GHz
G a d s l/ i m d s	Not Relevant
Gender	Jack
H f l h status	Low-Halogen per IEC 61249-2-21
Lead free process capability	SMC&WAVE
Material type	Finished Goods
Max cycles at max process temperature	2
Max. frequency	18GHz
Minimum line quantity	3200
Misc Attribute	Molex MOL DataCom & Specialty
Net weight	1.474/g
Orientation	Straight
Packaging Type	Tray
Panel mount	No
Pcb mounting	Through Hole
Pcb thickness recommended	3.00mm
Power voltage	VOLTAGE: 500 Vrms@Sea Level
Primary pack qty	80
Process temperature max c	260
Product name	SMA
Product number display	733910070
Product number hyphen	73391-0070
Product number sap	0733910070
Prop risk status	Cancer, Developmental toxicity, Reproductive toxicity
Prop sub status	Lead compounds
Reach status	Contains Lead per D(2025)7771-DC (04 Feb 2026)
Reference series	73391
Reverse polar	No
Ro h s status	Compliant with Exemption 6(c) per EU 2015/863
Sampleable	False
Style	PCB
Taxonomy	RF / Coaxial Connectors
Upc	800753926158
