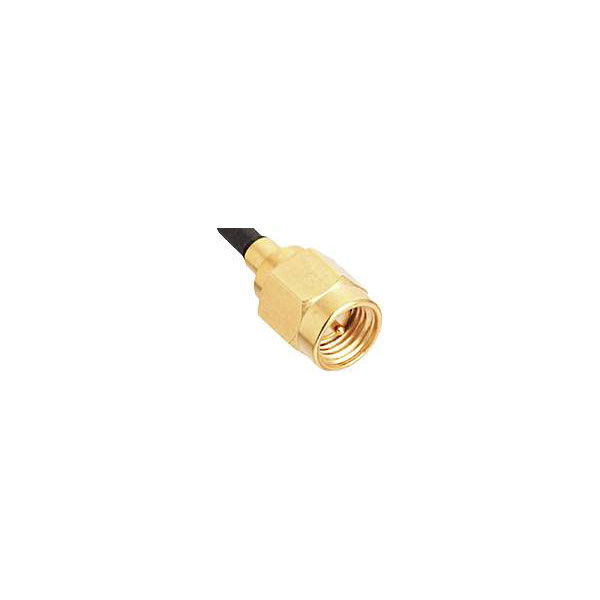

The Molex 732510051 SMA connector is a high-frequency plug designed with a 50 O impedance. This coaxial connector is ideal for use in RF communication applications, such as antenna connections. Packaged in a single unit, it offers reliable performance for precise and stable signal transmission.
| Type |
SMA connector |
| Impedance |
50Ω |
| Mounting Direction |
Inline |
| Application |
RF |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| Cable attachment |
Solder |
| Cable category |
RG 405 |
| Cable Ø |
2.18mm |
| China ro h s status |
50 Image per SJ/T 11365-2006 |
| Connector Type |
Plug |
| Delivery unit |
500 |
| Design registration eligibility |
true |
| ELV status |
Not Relevant |
| Engineering number |
73251-0051 |
| Engineering Part No |
73251-0051 |
| Engineering Series Name |
SMA |
| Engineering Series No |
73251 |
| First published date |
2007-09-26 |
| Frequency |
18 GHz |
| G a d s l/ i m d s |
Not Relevant |
| Gender |
Plug |
| H f l h status |
Not Low-Halogen per IEC 61249-2-21 |
| Material type |
Finished Goods |
| Max. frequency |
18GHz |
| Minimum line quantity |
500 |
| Misc Attribute |
Molex MOL DataCom & Specialty |
| Net weight |
2.251/g |
| Orientation |
Straight |
| Packaging Type |
Bag |
| Panel mount |
No |
| Power voltage |
VOLTAGE: 500 Vrms@Sea Level |
| Primary pack qty |
1 |
| Product name |
SMA |
| Product number display |
732510051 |
| Product number hyphen |
73251-0051 |
| Product number sap |
0732510051 |
| Prop risk status |
Cancer, Developmental toxicity, Reproductive toxicity |
| Prop sub status |
Lead compounds |
| Reach status |
Contains Lead per D(2025)4165-DC (25 June 2025) |
| Reference series |
73251 |
| Reverse polar |
No |
| Ro h s status |
Compliant with Exemption 6(c) per EU 2015/863 |
| Sampleable |
False |
| Style |
Cable |
| Taxonomy |
RF / Coaxial Connectors |
| Upc |
756054713617 |
| Wire cable type |
RG-405, .086" Semi-Rigid Coaxial |
