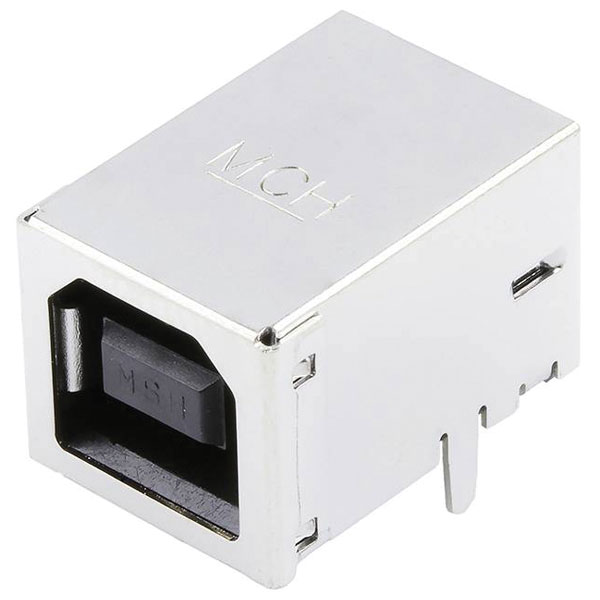

The Molex 676433911 is a right-angle USB B receptacle connector, ideal for robust electronic connections. It facilitates data transfer in computers, printers, and other peripherals. Known for reliability and compact design, it is frequently used in industrial and consumer applications.
| Type |
USB connector |
| Gender |
Female |
| Application |
Wire-to-Board |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Circuits loaded |
4 |
| Circuits maximum |
4 |
| Color resin |
White |
| Comments |
Without Upper Flange, For IR Reflow Process |
| Component type |
Receptacle |
| Current maximum per contact |
1.5A |
| Delivery unit |
1000 |
| Design registration eligibility |
true |
| Elv status |
Not Relevant |
| Engineering number |
67643-3911 |
| Engineering Series Name |
USB B R/A RCPT |
| Engineering Series No |
67643 |
| First published date |
2007-04-27 |
| G a d s l/ i m d s |
Not Relevant |
| H f l h status |
Not Low-Halogen per IEC 61249-2-21 |
| Keying to mating part |
Yes |
| Lead free process capability |
SMC&WAVE |
| Lock to mating part |
Yes |
| Material plating mating |
Gold |
| Material plating termination |
Tin |
| Material type |
Finished Goods |
| Minimum line quantity |
2000 |
| Mounting Style |
Top-Mount |
| Net weight |
1.860/g |
| Number of Rows |
1 |
| Orientation |
Right Angle |
| Packaging Type |
Tray |
| Panel mount |
Yes |
| Pc tail length |
2.60mm |
| Pcb locator |
Yes |
| Pcb retention |
Yes |
| Pcb thickness recommended |
1.60mm |
| Pitch mating interface |
2.00mm, 2.50mm |
| Pitch termination interface |
2.00mm, 2.50mm |
| Plating min mating |
0.762µm |
| Polarized to mating part |
Yes |
| Polarized to pcb |
Yes |
| Ports |
1 |
| Primary pack qty |
50 |
| Process temperature max c |
260 |
| Product name |
USB |
| Product number display |
676433911 |
| Product number hyphen |
67643-3911 |
| Product number sap |
0676433911 |
| Reach status |
Not Contained per D(2025)7771-DC (04 Feb 2026) |
| Reference series |
67643 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
True |
| Shield Type |
Full Shield |
| Shielded |
Yes |
| Standard |
USB 2.0 |
| Taxonomy |
I/O Connectors |
| Temperature range operating |
-40° to +85°C |
| Termination interface style |
Through Hole |
| Ul |
E29179 |
| Upc |
822350071666 |
| Voltage maximum |
30V DC |
| Waterproof dustproof |
No |
