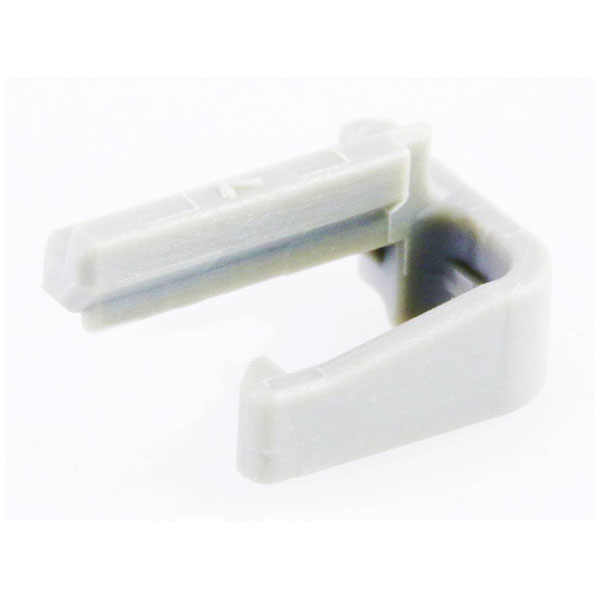

Molex manufactures the TPA retainer, model number 5601250300, featuring a three-pin configuration. This part enhances connector retention by securing terminal positions within a housing. Common applications include automotive and commercial electronics, ensuring reliable performance under vibration.
| No. of Rows |
1 |
| No. of Ways |
3 |
| Application |
Automotive |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| Case Material |
PBT |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Circuits loaded |
3 |
| Circuits maximum |
3 |
| Color resin |
Gray |
| Component type |
Independent Secondary Lock |
| Delivery unit |
20000 |
| Design registration eligibility |
true |
| ELV status |
Compliant per 2000/53/EC |
| Engineering number |
560125-0300 |
| Engineering Part No |
560125-0300 |
| Engineering Series Name |
DuraClik ISL |
| Engineering Series No |
560125 |
| Factory colour |
Grey |
| First published date |
2015-06-25 |
| G a d s l/ i m d s |
Compliant |
| H f l h status |
Not Low-Halogen per IEC 61249-2-21 |
| Lock to mating part |
Yes |
| Material resin |
PBT |
| Material type |
Finished Goods |
| Maximum Temperature |
+130°C |
| Min. temperature |
-40°C |
| Minimum line quantity |
20000 |
| Misc Attribute |
Molex MOL Automotive |
| Net weight |
0.053/g |
| Number of Rows |
1 |
| Packaging Type |
Bag |
| Polarized to mating part |
Yes |
| Primary pack qty |
1000 |
| Product name |
DuraClik |
| Product number display |
5601250300 |
| Product number hyphen |
560125-0300 |
| Product number sap |
5601250300 |
| Reach status |
Not Contained per D(2025)7771-DC (04 Feb 2026) |
| Reference series |
560125 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
True |
| Taxonomy |
Connector Accessories |
| Temperature range operating |
-40° to +130°C |
| Type |
TPA retainer |
| Upc |
889056288279 |
