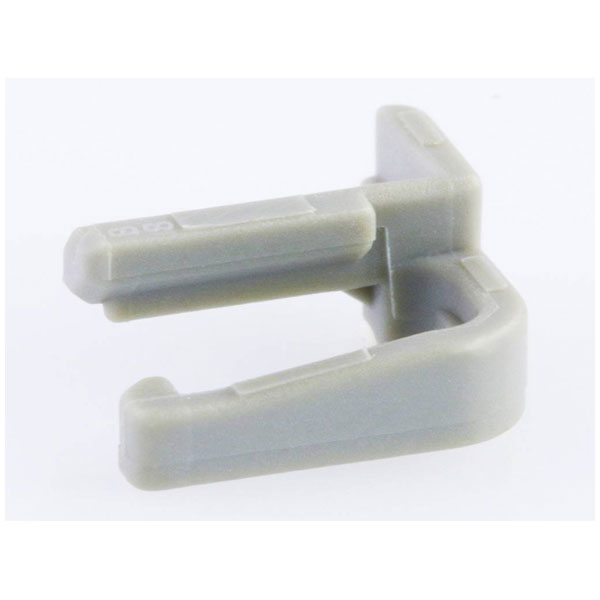

Molex 5601250200 Duraclik ISL Retainer 2 Pins Grey 1Pc Bag

Molex is the manufacturer of this 2-pin lock connector, reference number 5601250200. The connector is compact, secure, and suitable for reliable electrical connections. Typically, it is used in automotive and industrial applications where durability and secure locking are critical.

Type	Lock
Application	Automotive
Base unit of measure	PC
Base unit of measure desc	piece
Case Material	PBT
China ro h s status	Compliant per SJ/T 11365-2006
Circuits loaded	2
Circuits maximum	2
Color resin	Gray
Colour	Grey
Component type	Independent Secondary Lock
Connector System	wire-to-board
Delivery unit	30000
Design registration eligibility	true
ELV status	Compliant per 2000/53/EC
Engineering number	560125-0200
First published date	2014-10-15
G a d s l/ i m d s	Compliant
H f l h status	Not Low-Halogen per IEC 61249-2-21
Lock to mating part	Yes
Material	PBT
Material resin	PBT
Material type	Finished Goods
Maximum Temperature	+130°C
Min. temperature	-40°C
Minimum line quantity	30000
Net weight	0.054/g
Number of Rows	1
Packaging Type	Bag
Polarized to mating part	Yes
Primary pack qty	1500
Product name	DuraClik
Product number display	5601250200
Product number hyphen	560125-0200
Product number sap	5601250200
Reach status	Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series	560125
Ro h s status	Compliant per EU 2015/863
Sampleable	True
Taxonomy	Connector Accessories
Temperature range operating	-40° to +130°C
Total number of pins	2
Upc	887191705545
