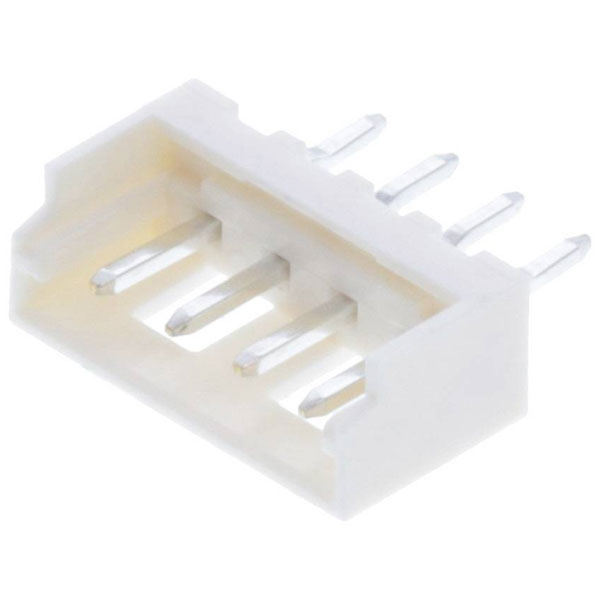

Molex 532530470 Micro-latch PCB Header 2.00mm Pitch 4 Circuits

Molex
Order Code:

05-4069

Brand: Molex MPN: 532530470 EAN-13: 2050007333616
Qty Unit Price (Ex VAT)
25+ £0.187
125+ £0.166
250+ £0.159
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
746 in stock, despatched in 4 working days

Molex pin housing PCB 532530470 is designed for secure and reliable electrical connections. This component is typically used in printed circuit boards for various electronic applications. It features a durable construction ideal for maintaining stable connections in complex circuits.
Type Pin housing PCB
Number of Rows 1
Application Signal, Wire-to-Board
Base unit of measure PC
Base unit of measure desc piece
Breakaway No
China ro h s status Compliant per SJ/T 11365-2006
Circuits loaded 4
Circuits maximum 4
Color resin Natural
Component type PCB Header
Current maximum per contact 2.0A
Delivery unit 8000
Design registration eligibility true
Durability mating cycles max 30
Elv status Not Relevant
Engineering number 53253-0470
Engineering Part No 53253-0470
Engineering Series Name Hdr Str
Engineering Series No 53253
First mate last break No
First published date 2007-06-08
Flammability 94V-0
G a d s l/ i m d s Compliant with Exemption 44; 33
Glow wire capable No
H f l h status Not Low-Halogen per IEC 61249-2-21
Lock to mating part Yes
Material metal Brass
Material plating mating Tin
Material plating termination Tin
Material resin Nylon
Material type Finished Goods
Minimum line quantity 16000
Net weight 168.000/mg
Orientation Vertical
Packaging Type Tray
Pc tail length 3.50mm
Pcb locator No
Pcb retention Yes
Pcb thickness recommended 1.60mm
Pitch mating interface 2.00mm
Plating min mating 1.016µm
Plating min termination 1.016µm
Polarized to mating part Yes
Polarized to pcb No
Primary pack qty 1000
Product name Micro-Latch
Product number display 532530470
Product number hyphen 53253-0470
Product number sap 0532530470
Reach status Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series 53253
Ro h s status Compliant per EU 2015/863
Sampleable True
Shrouded Partial
Stackable No
Taxonomy PCB Headers and Receptacles
Temperature range operating -55° to +105°C
Termination interface style Through Hole
Ul E29179
Upc 756054354025
Voltage maximum 125V
