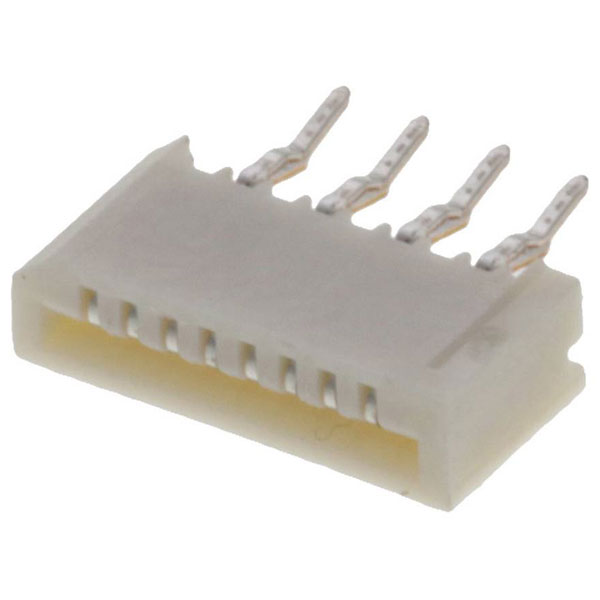

Molex 528060810 Sil Socket 8-pin 1mm Pitch Vert Smt Non-zif Kinked

Molex
Order Code:

05-4046

Brand: Molex MPN: 528060810 EAN-13: 2050007121657
Qty Unit Price (Ex VAT)
20+ £0.345
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
6 in stock, despatched in 4 working days

Molex manufactures the SIL socket 528060810, featuring a standard design with 8 pins and a contact spacing of 1 mm. It is available in single units packaged in a tray. This socket is typically used in precision electronic applications requiring reliable and compact connections.
Type SIL socket (standard)
Number of Positions 8
Number of Rows 1
Actuator Type Non-ZIF
Base unit of measure PC
Base unit of measure desc piece
Board contact surface Tin
Case Material High temperature resistant thermoplastic
China ro h s status Compliant per SJ/T 11365-2006
Circuits loaded 8
Coating thickness (PCB side) 0.914µm
Color resin Natural
Colour Ecru
Connection Print
Connector coating thickness 0.914µm
Connector contact surface Tin
Connector orientation Perpendicular (to the PCB)
Contact Material Phosphor bronze
Cross Section 1mm
Current maximum per contact 0.5A
Delivery unit 12000
Design registration eligibility true
Durability mating cycles max 10
Elv status Not Relevant
Engineering number 52806-0810
Engineering Part No 52806-0810
Engineering Series Name 1.0 NON ZIF ST TH
Engineering Series No 52806
First published date 2007-05-03
G a d s l/ i m d s Compliant with Exemption 44
H f l h status Not Low-Halogen per IEC 61249-2-21
Mated height 5.40mm
Material metal Phosphor Bronze
Material plating mating Tin
Material plating termination Tin
Material resin High Temperature Thermoplastic
Material type Finished Goods
Max. temperature +80°C
Min. temperature -20°C
Minimum line quantity 12000
Misc Attribute Molex MOL Micro Solutions
Net weight 258.101/mg
Nominal Current 500mA
Nominal Voltage 50V
Orientation Vertical
Packaging Type Tray
Pc tail length 3.20mm
Pcb locator No
Pcb mounting Through Hole - Kinked Pin
Pcb retention No
Pcb thickness recommended 1.60mm
Pitch mating interface 1.00mm
Pitch termination interface 1.00mm
Plating min mating 0.914µm
Plating min termination 0.914µm
Polarized to pcb No
Primary pack qty 300
Product name Easy-On
Product number display 528060810
Product number hyphen 52806-0810
Product number sap 0528060810
Reach status Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series 52806
Ro h s status Compliant per EU 2015/863
Sampleable False
Stackable No
Taxonomy FFC / FPC Connectors
Temperature range operating -20° to +80°C
Ul E29179
Upc 800754361064
Voltage maximum 50V
Wire cable type FFC/FPC
