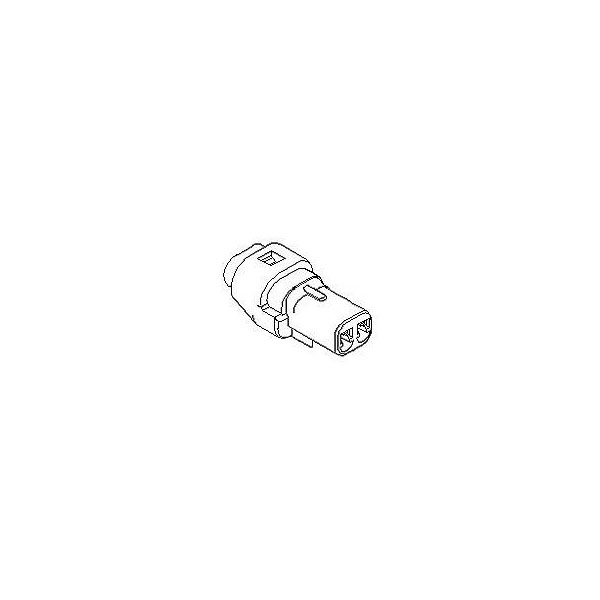

Molex is the manufacturer of the socket housing cable, part number 522130211. This component is designed for secure and reliable electrical connections, making it ideal for various electronic and electrical applications. It is typically used in wiring harnesses, circuit board connections, and electronic assemblies.
| Type |
Socket housing cable |
| Pitch |
2.5mm |
| Number of Rows |
1 |
| Mounting Type |
Cable mount |
| Mounting Direction |
Straight |
| Application |
Signal, Wire-to-Wire |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Circuits maximum |
2 |
| Colour resin |
Black |
| Comments |
See Product Specification for maximum current rating by wire AWG |
| Delivery unit |
5400 |
| Design registration eligibility |
true |
| ELV status |
Compliant per 2000/53/EC |
| Engineering number |
52213-0211 |
| Engineering Part No |
52213-0211 |
| Engineering Series Name |
2.5 Mini Splash prf |
| Engineering Series No |
52213 |
| First published date |
2007-05-16 |
| Flammability |
94V-0 |
| G a d s l/ i m d s |
Compliant |
| Gender |
Receptacle |
| Glow wire capable |
No |
| H f l h status |
Not Low-Halogen per IEC 61249-2-21 |
| Lock to mating part |
Yes |
| Material resin |
Polyester |
| Material type |
Finished Goods |
| Minimum line quantity |
5400 |
| Net weight |
451.300/mg |
| Packaging Type |
Tray |
| Panel mount |
No |
| Primary pack qty |
1350 |
| Product name |
Mizu-P25 Waterproof,Splash Proof |
| Product number display |
522130211 |
| Product number hyphen |
52213-0211 |
| Product number sap |
0522130211 |
| Reach status |
Not Contained per D(2025)7771-DC (04 Feb 2026) |
| Reference series |
52213 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
True |
| Stackable |
No |
| Taxonomy |
Connector Housings |
| Temperature range operating |
-40° to +105°C |
| Ul |
E29179 |
| Upc |
800754376945 |
