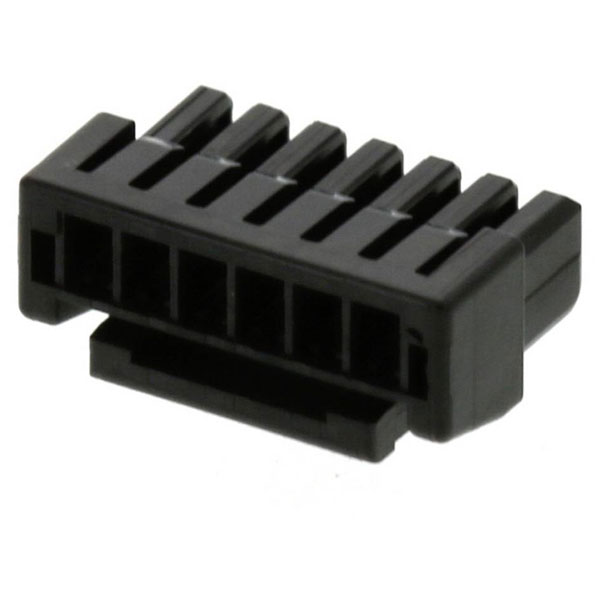

Molex 5055650601 Micro-lock Plus 6-pin 1.25mm Pitch Receptacle Housing

Molex
Order Code:

05-3912

Brand: Molex MPN: 5055650601 EAN-13: 2050007117988
Qty Unit Price (Ex VAT)
20+ £0.201
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,098 in stock, despatched in 4 working days

Molex manufactures the socket housing cable with a total of 6 pins and a contact spacing of 1.25 mm. This component, model number 5055650601, is ideally suited for compact electronic connectors requiring reliable pin alignment. It is typically used in consumer electronics, communication devices, and other precision equipment.
Type Socket housing cable
Pitch 1.25mm
Number of Ways 6
Number of Rows 1
Application Signal, Wire-to-Board, Wire-to-Wire
Base unit of measure PC
Base unit of measure desc piece
Case Material Polyester
China ro h s status Compliant per SJ/T 11365-2006
Circuits maximum 6
Color resin Black
Colour Black
Connector System wire-to-board
Connector Type Socket
CS 1.25mm
Delivery unit 40000
Design registration eligibility true
ELV status Not Relevant
Engineering number 5055650601
Engineering Series Name SGL Rcpt Hsg
Engineering Series No 505565
First published date 2017-04-21
G a d s l/ i m d s Not Relevant
Gender Receptacle
Glow wire capable No
H f l h status Not Low-Halogen per IEC 61249-2-21
Keying to mating part No
Keyword Micro-Lock Plus 1.25
Lock to mating part Yes
Material resin PBT
Material type Finished Goods
Max. temperature +105°C
Min. temperature -40°C
Minimum line quantity 40000
Misc Attribute Molex MOL Power & Signal Sol.
Net weight 138.021/mg
Packaging Type Bag
Panel mount No
Pitch termination interface 1.25mm
Polarized to mating part Yes
Primary pack qty 1000
Product name Micro-Lock Plus
Product number display 5055650601
Product number hyphen 505565-0601
Product number sap 5055650601
Reach status Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series 505565
Ro h s status Compliant per EU 2015/863
Sampleable True
Taxonomy Connector Housings
Temperature range operating -40° to +105°C
Ul E29179
Upc 889056502917
