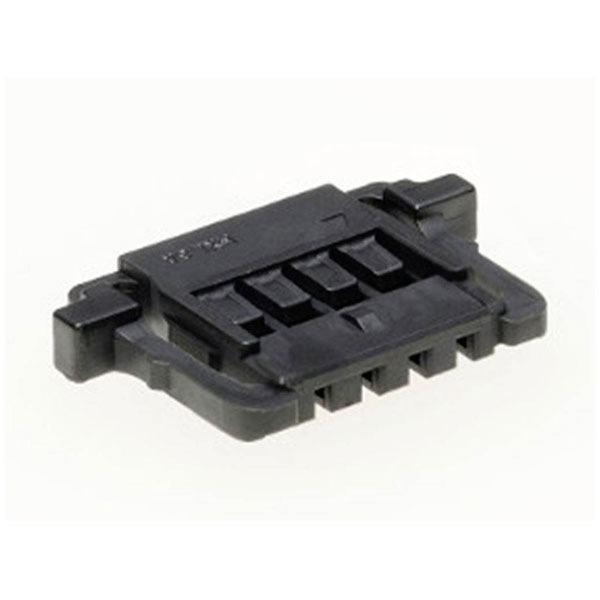

The Molex socket housing cable, model 5040510401, features four pins with a contact spacing of 1.5 mm. Manufactured by Molex, this compact housing is ideal for applications requiring reliable electrical connections in tight spaces. Typical uses include connecting circuits in consumer electronics and low-power devices.
| Type |
Socket housing cable |
| Pitch |
1.50mm |
| Number of Ways |
4 |
| Number of Rows |
1 |
| Application |
Signal, Wire-to-Board |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| Case Material |
High temperature resistant thermoplastic |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Circuits maximum |
4 |
| Color resin |
Black |
| Colour |
Black |
| Comments |
See Molex product specification PS-504051-001 for additional current de-rating information |
| Connector Type |
Socket |
| CS |
1.5mm |
| Csa |
LR19980 |
| Delivery unit |
64000 |
| Design registration eligibility |
true |
| ELV status |
Compliant per 2000/53/EC |
| Engineering number |
504051-0401 |
| Engineering Part No |
504051-0401 |
| Engineering Series Name |
Rcpt Hsg |
| Engineering Series No |
504051 |
| First published date |
2013-08-27 |
| Flammability |
94V-0 |
| G a d s l/ i m d s |
Not Relevant |
| Gender |
Receptacle |
| Glow wire capable |
No |
| H f l h status |
Low-Halogen per IEC 61249-2-21 |
| Keying to mating part |
No |
| Keyword |
Pico-Lock 1.5 |
| Lock to mating part |
Yes |
| Material resin |
High Temperature Thermoplastic |
| Material type |
Finished Goods |
| Max. temperature |
+105°C |
| Min. temperature |
-40°C |
| Minimum line quantity |
64000 |
| Misc Attribute |
Molex MOL Power & Signal Sol. |
| Net weight |
55.500/mg |
| Packaging Type |
Bag |
| Panel mount |
No |
| Polarized to mating part |
Yes |
| Primary pack qty |
1000 |
| Product name |
Pico-Lock |
| Product number display |
5040510401 |
| Product number hyphen |
504051-0401 |
| Product number sap |
5040510401 |
| Reach status |
Not Contained per D(2025)7771-DC (04 Feb 2026) |
| Reference series |
504051 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
True |
| Stackable |
No |
| Taxonomy |
Connector Housings |
| Temperature range operating |
-40° to +105°C |
| Ul |
E29179 |
| Upc |
887191335360 |
