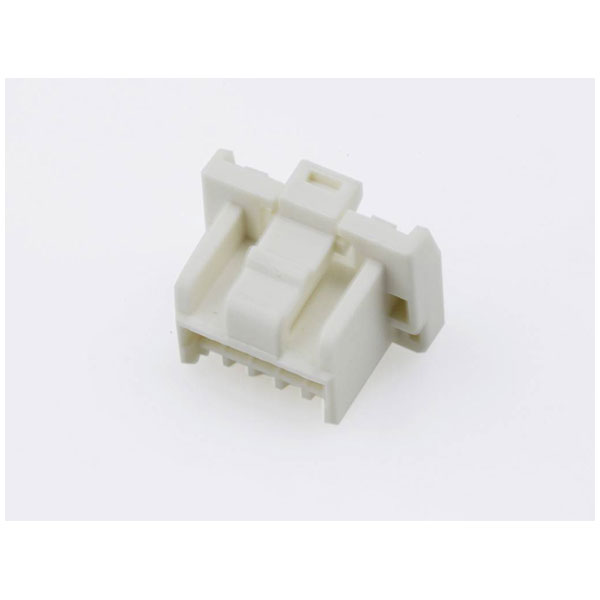

The Molex socket housing cable, part number 5025780500, is manufactured by Molex and features a configuration of five pins with 1.5 mm contact spacing. This component is commonly packaged as a single unit in a bag and is used in electronic and electrical applications where secure and reliable connections are needed. Ideal for use in consumer electronics and telecommunications equipment, it ensures efficient connectivity in compact spaces.
| Type |
Socket housing cable |
| Pitch |
1.50mm |
| Number of Ways |
5 |
| Number of Rows |
1 |
| Mounting Type |
Cable mount |
| Mounting Direction |
Straight |
| Application |
Signal, Wire-to-Board |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| Case Material |
PBT |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Circuits maximum |
5 |
| Color resin |
Natural |
| Colour |
Beige |
| Connector System |
wire-to-board |
| Connector Type |
Plug |
| CS |
1.5mm |
| Delivery unit |
16000 |
| Design registration eligibility |
true |
| ELV status |
Compliant per 2000/53/EC |
| Engineering number |
502578-0500 |
| Engineering Part No |
502578-0500 |
| Engineering Series Name |
SGL B/E Plug Hsg |
| Engineering Series No |
502578 |
| First published date |
2008-09-01 |
| G a d s l/ i m d s |
Not Relevant |
| Gender |
Plug |
| Glow wire capable |
No |
| H f l h status |
Not Low-Halogen per IEC 61249-2-21 |
| Keying to mating part |
No |
| Lock to mating part |
Yes |
| Material resin |
PBT |
| Material type |
Finished Goods |
| Maximum Temperature |
+105°C |
| Min. temperature |
-40°C |
| Minimum line quantity |
16000 |
| Misc Attribute |
Molex MOL Power & Signal Sol. |
| Net weight |
296.000/mg |
| Packaging Type |
Bag |
| Panel mount |
No |
| Pitch termination interface |
1.50mm |
| Polarized to mating part |
Yes |
| Primary pack qty |
1000 |
| Product name |
CLIK-Mate |
| Product number display |
5025780500 |
| Product number hyphen |
502578-0500 |
| Product number sap |
5025780500 |
| Reach status |
Not Contained per D(2025)7771-DC (04 Feb 2026) |
| Reference series |
502578 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
True |
| Stackable |
No |
| Taxonomy |
Connector Housings |
| Temperature range operating |
-40° to +105°C |
| Ul |
E29179 |
| Upc |
800756700120 |
