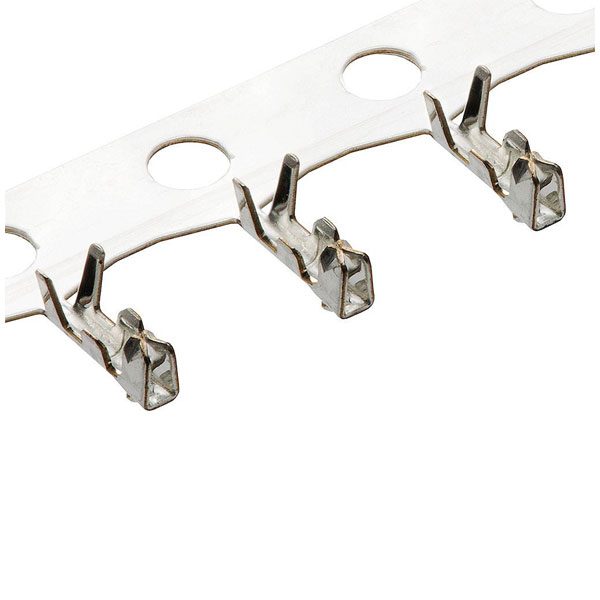

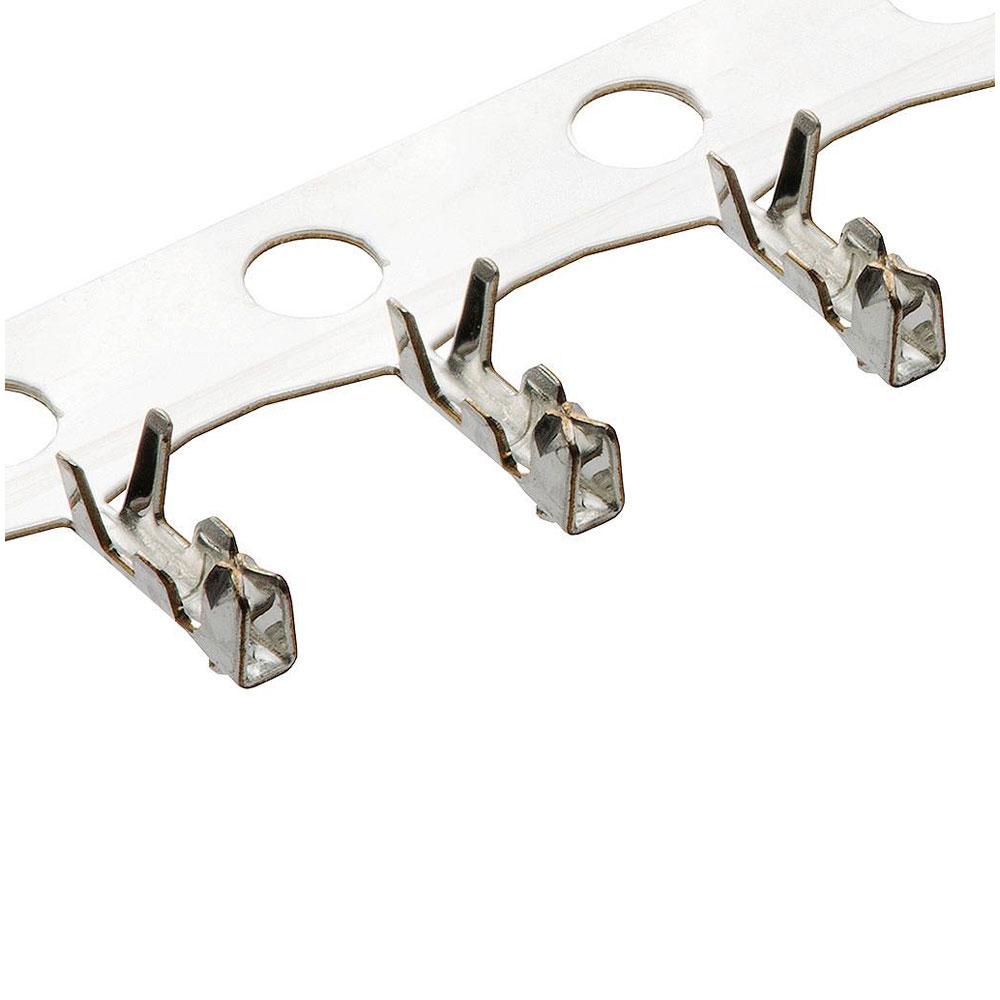

Molex 500798000 Picoblade Female Crimp Terminal 1.25mm Pitch Tin

Molex
Order Code:

05-3796

Brand: Molex MPN: 500798000 EAN-13: 2050009143053
Qty Unit Price (Ex VAT)
400+ £0.0100
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
4,574 in stock, despatched in 4 working days

Molex's crimp contact 500798000 is a high-quality electrical connector designed for secure wire termination. It is ideal for use in automotive, industrial, and consumer electronics applications. The contact ensures reliable electrical connections with its precise engineering and durable materials.
Type Crimp contact
Application Signal, Wire-to-Board, Wire-to-Wire
Base unit of measure PC
Base unit of measure desc piece
China ro h s status Compliant per SJ/T 11365-2006
Current maximum per contact 1.0A
Delivery unit 75000
Design registration eligibility true
Durability mating cycles max 30
ELV status Compliant per 2000/53/EC
Engineering number 50079-8000
First published date 2007-05-16
G a d s l/ i m d s Compliant with Exemption 44
Gender Female
H f l h status Low-Halogen per IEC 61249-2-21
Material metal Phosphor Bronze
Material plating mating Tin
Material plating termination Tin
Material type Finished Goods
Minimum line quantity 225000
Net weight 9.910/mg
Packaging Type Reel
Plating min mating 0.889µm
Plating min termination 0.889µm
Primary pack qty 25000
Product name PicoBlade
Product number display 500798000
Product number hyphen 50079-8000
Product number sap 0500798000
Reach status Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series 50079
Ro h s status Compliant per EU 2015/863
Sampleable False
Taxonomy Crimp Terminals
Termination interface style Crimp or Compression
Upc 800753616233
Voltage maximum 125V AC (RMS)/DC
Wire insulation diameter 0.50-1.04mm
Wire size awg 26, 28
