Molex 436500627 Micro-fit 3.0 Vertical Header 6 Pin 3mm Pitch Black

Molex
Order Code:

05-3719

Brand: Molex MPN: 436500627 EAN-13: 2050007113515
Qty Unit Price (Ex VAT)
3+ £1.57
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
11 in stock, despatched in 3 working days

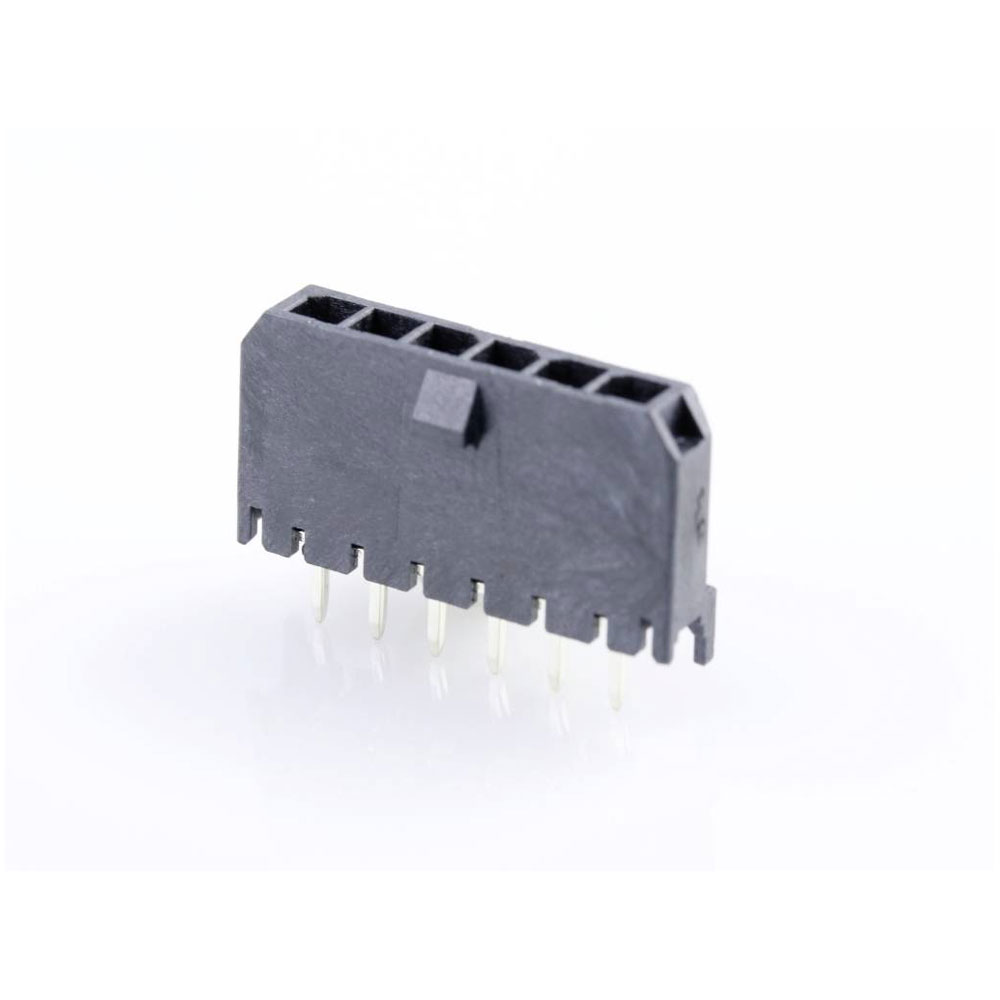

The Molex built-in pin strip 436500627 features 6 pins with a contact spacing of 3 mm, packaged in a tray. Designed for reliable electrical connections, it is commonly used in electronics prototyping and circuit board applications. The high-quality construction ensures durability and performance in various settings.
Board contact surface Tin
Case Material High temperature resistant thermoplastic
Coating thickness (PCB side) 2.54µm
Connection Soldering
Connector coating thickness 2.54µm
Connector contact surface Tin
Connector orientation Perpendicular (to the PCB)
Contact Material Brass
CS 3mm
Engineering Part No 43650-0627
Engineering Series Name MICROFIT SR HDR
Engineering Series No 43650
Factory colour Black
Max. temperature +105°C
Min. temperature -40°C
Misc Attribute Molex MOL Power & Signal Sol.
Nominal Current 8.5A
Nominal current - rounded value 8.5A
Nominal Voltage 600V
Number of Rows 1
Packaging Type Tray
Total number of pins 6
Type Built-in pin strip (standard)
