Molex 436500424 Micro-fit 3.0 Header 4 Circuits Solder Tab Black

Molex
Order Code:

05-3717

Brand: Molex MPN: 436500424 EAN-13: 2050009143725
Qty Unit Price (Ex VAT)
5+ £1.07
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,395 in stock, despatched in 4 working days

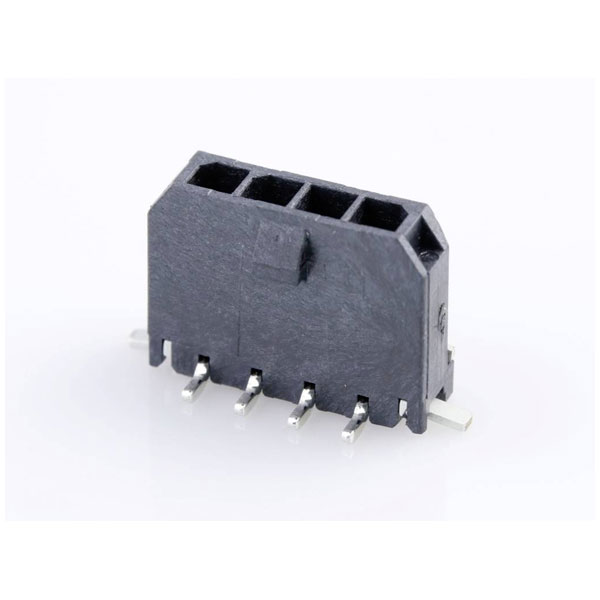

The Molex 436500424 pin housing PCB is a single-piece connector used for securing electronic connections. It features a robust design suitable for providing stability and reliability in PCB applications. Typically used in various electronic and electrical systems, it is ideal for facilitating seamless interconnections.
No. of Ways 4
Application Power, Wire-to-Board
Base unit of measure PC
Base unit of measure desc piece
Breakaway No
China ro h s status Compliant per SJ/T 11365-2006
Circuits loaded 4
Circuits maximum 4
Color resin Black
Comments High Temperature, Square Pin, Solder Type; This Molex product is manufactured from material that has the following ratings, tested by independent agencies: a) A Glow Wire Ignition Temperature (GWIT) of at least 775 deg C per IEC 60695-2-13. b) A Glow Wire Flammability Index (GWFI) above 850 deg C per IEC 60695-2-12 and hence complies with the requirements set out in the International Standard IEC 60335-1 5th edition - household and similar electrical appliances - safety, section 30 Resistance to heat and fire. The customers using this product must determine its suitability for use in their particular application through testing or other acceptable means as described in end-product glow-wire flammability test standard IEC 60695-2-11 and any applicable product end-use standard(s). If it is determined during the customers evaluation of suitability, that higher performance is required, please contact Molex for possible product options.
Component type PCB Header
Csa LR19980
Current maximum per contact 8.5A
Delivery unit 1400
Design registration eligibility true
Durability mating cycles max 30
Duration at max process temperature seconds 30
Elv status Not Relevant
Engineering number 43650-0424
First mate last break No
First published date 2007-06-08
G a d s l/ i m d s Compliant with Exemption 44; 33
Glow wire capable Yes
H f l h status Low-Halogen per IEC 61249-2-21
Lead free process capability REFLOW
Mated height 17.27mm
Material metal Brass
Material plating mating Matte Tin
Material plating termination Matte Tin
Material resin High Temperature Thermoplastic
Material type Finished Goods
Max cycles at max process temperature 3
Minimum line quantity 1400
Net weight 0.945/g
Number of Rows 1
Orientation Vertical
Packaging Type Embossed Tape on Reel
Pcb locator Yes
Pcb retention Yes
Pcb thickness recommended 1.60mm
Pitch mating interface 3.00mm
Plating min mating 1.524µm
Plating min termination 1.524µm
Polarized to pcb Yes
Primary pack qty 200
Process temperature max c 260
Product name Micro-Fit 3.0
Product number display 436500424
Product number hyphen 43650-0424
Product number sap 0436500424
Reach status Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series 43650
Ro h s status Compliant per EU 2015/863
Sampleable True
Shrouded Fully
Stackable No
Taxonomy PCB Headers and Receptacles
Temperature range operating -40° to +105°C
Termination interface style Surface Mount
Type Pin housing PCB
Ul E29179
Upc 800754774338
Voltage maximum 600V
