Molex 436450800 Micro-fit 3.0 Socket Housing 8 Pins 3 Mm Spacing

Molex
Order Code:

05-3706

Brand: Molex MPN: 436450800 EAN-13: 2050007111030
Qty Unit Price (Ex VAT)
20+ £0.390
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
704 in stock, despatched in 4 working days

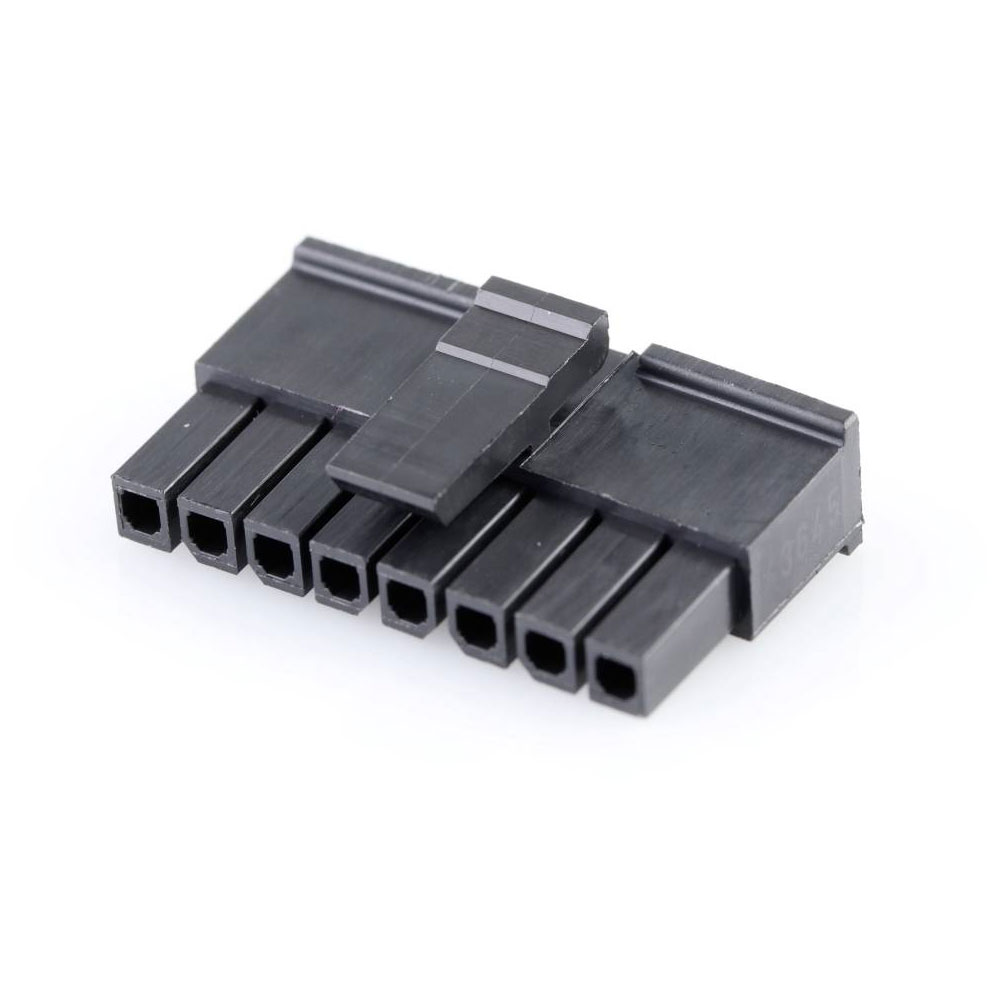

The Molex socket housing cable, model 436450800, features 8 pins with a contact spacing of 3 mm. This component is typically used in electrical and electronic applications for secure cable connections. Suitable for diverse integration needs, it is packaged individually in bags.
Type Socket housing cable
Pitch 3.00mm
Number of Ways 8
Number of Rows 1
Application Power, Wire-to-Board, Wire-to-Wire
Base unit of measure PC
Base unit of measure desc piece
Case Material Polyester
China ro h s status Compliant per SJ/T 11365-2006
Circuits maximum 8
Color resin Black
Colour Black
Connector Type Socket
CS 3mm
Csa LR19980
Delivery unit 2000
Design registration eligibility true
Elv status Not Relevant
Engineering number 43645-0800
Engineering Part No 43645-0800
Engineering Series Name MICROFIT SR RECEPT
Engineering Series No 43645
First published date 2007-05-16
G a d s l/ i m d s Not Relevant
Gender Receptacle
Glow wire capable No
H f l h status Not Low-Halogen per IEC 61249-2-21
Keying to mating part No
Lock to mating part Yes
Material resin Polyester
Material type Finished Goods
Max. temperature +105°C
Min. temperature -40°C
Minimum line quantity 4000
Misc Attribute Molex MOL Power & Signal Sol.
Net weight 1.000/g
Packaging Type Bag
Panel mount No
Polarized to mating part Yes
Primary pack qty 2000
Product name Micro-Fit 3.0
Product number display 436450800
Product number hyphen 43645-0800
Product number sap 0436450800
Reach status Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series 43645
Ro h s status Compliant per EU 2015/863
Sampleable True
Stackable No
Taxonomy Connector Housings
Temperature range operating -40° to +105°C
Ul E29179
Upc 800753944329
