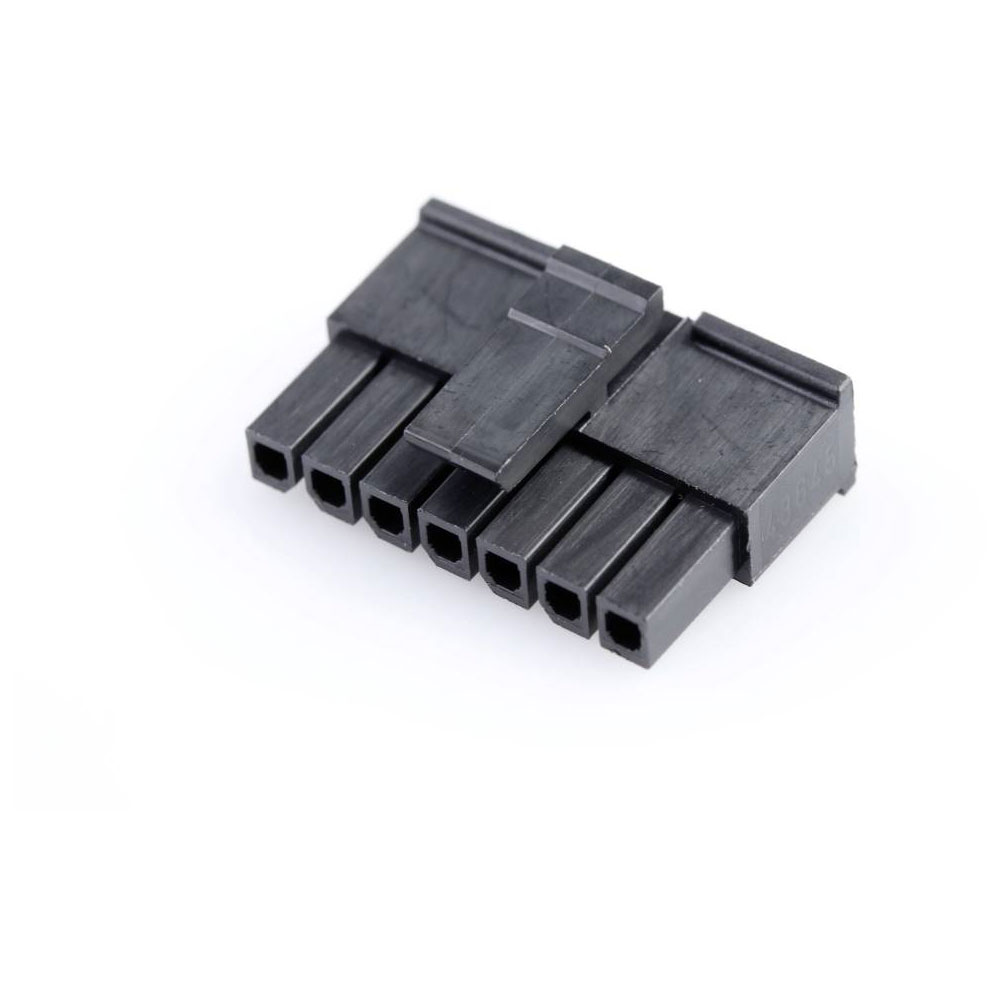

Molex 436450700 Micro-fit 7-pin Socket Housing 3mm Pitch Ul 94v-0

Molex
Order Code:

05-3705

Brand: Molex MPN: 436450700 EAN-13: 2050007111023
Qty Unit Price (Ex VAT)
10+ £0.530
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
15 in stock, despatched in 4 working days

Molex 436450700 is a socket housing cable featuring 7 pins with a contact spacing of 3 mm. It is ideal for applications requiring secure electrical connections in electronic equipment. This product comes as a single unit in a bag, suitable for prototyping and custom electronic projects.
Type Socket housing cable
Pitch 3.00mm
Number of Ways 7
Number of Rows 1
Application Power, Wire-to-Board, Wire-to-Wire
Base unit of measure PC
Base unit of measure desc piece
Case Material Polyester
China ro h s status Compliant per SJ/T 11365-2006
Circuits maximum 7
Color resin Black
Colour Black
Connector Type Socket
CS 3mm
Csa LR19980
Delivery unit 2000
Design registration eligibility true
Elv status Not Relevant
Engineering number 43645-0700
Engineering Part No 43645-0700
Engineering Series Name MICROFIT SR RECEPT
Engineering Series No 43645
First published date 2007-05-16
Flammability 94V-0
G a d s l/ i m d s Not Relevant
Gender Receptacle
Glow wire capable No
H f l h status Not Low-Halogen per IEC 61249-2-21
Keying to mating part No
Lock to mating part Yes
Material resin Polyester
Material type Finished Goods
Max. temperature +105°C
Min. temperature -40°C
Minimum line quantity 4000
Misc Attribute Molex MOL Power & Signal Sol.
Net weight 0.899/g
Packaging Type Bag
Panel mount No
Polarized to mating part Yes
Primary pack qty 2000
Product name Micro-Fit 3.0
Product number display 436450700
Product number hyphen 43645-0700
Product number sap 0436450700
Reach status Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series 43645
Ro h s status Compliant per EU 2015/863
Sampleable True
Stackable No
Taxonomy Connector Housings
Temperature range operating -40° to +105°C
Ul E29179
Upc 800753953710
