Molex 436450500 Micro-fit 3.0 Socket Housing 5 Pin 3 Mm Black Ul 94v-0

Molex
Order Code:

05-3702

Brand: Molex MPN: 436450500 EAN-13: 2050007110996
Qty Unit Price (Ex VAT)
10+ £0.433
125+ £0.285
500+ £0.283
2500+ £0.281
5000+ £0.279
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
274 in stock, despatched in 4 working days

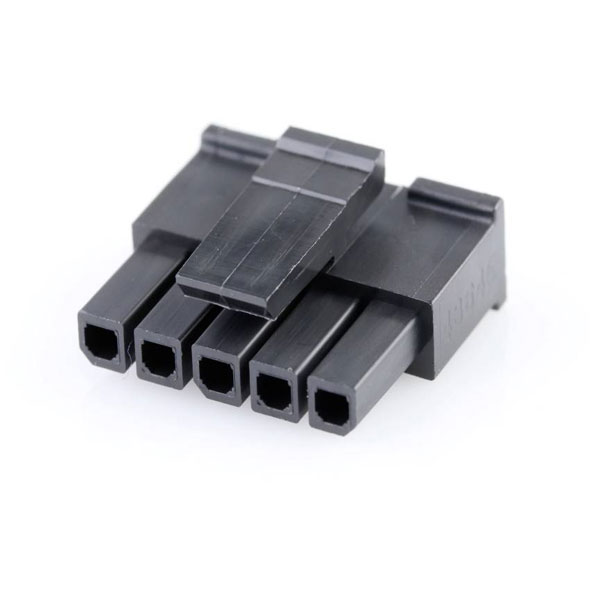

The Molex Socket housing cable, manufactured by Molex, features five pins with a contact spacing of 3 mm. This component is suitable for secure and reliable connector applications. It is typically used in electronic and electrical applications that require compact and efficient wiring solutions.
Type Socket housing cable
Pitch 3.00mm
Number of Ways 5
Number of Rows 1
Application Power, Wire-to-Board, Wire-to-Wire
Base unit of measure PC
Base unit of measure desc piece
Case Material Polyester
China ro h s status Compliant per SJ/T 11365-2006
Circuits maximum 5
Color resin Black
Colour Black
Connector Type Socket
CS 3mm
Csa LR19980
Delivery unit 2500
Design registration eligibility true
Elv status Compliant per 2000/53/EC
Engineering number 43645-0500
Engineering Part No 43645-0500
Engineering Series Name MICROFIT SR RECEPT
Engineering Series No 43645
First published date 2007-05-16
Flammability 94V-0
G a d s l/ i m d s Compliant with Exemption 44
Gender Receptacle
Glow wire capable No
H f l h status Not Low-Halogen per IEC 61249-2-21
Keying to mating part No
Lock to mating part Yes
Material resin Polyester
Material type Finished Goods
Max. temperature +105°C
Min. temperature -40°C
Minimum line quantity 7500
Misc Attribute Molex MOL Power & Signal Sol.
Net weight 0.725/g
Packaging Type Bag
Panel mount No
Polarized to mating part Yes
Primary pack qty 2500
Product name Micro-Fit 3.0
Product number display 436450500
Product number hyphen 43645-0500
Product number sap 0436450500
Reach status Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series 43645
Ro h s status Compliant per EU 2015/863
Sampleable True
Stackable No
Taxonomy Connector Housings
Temperature range operating -40° to +105°C
Ul E29179
Upc 800754366205
