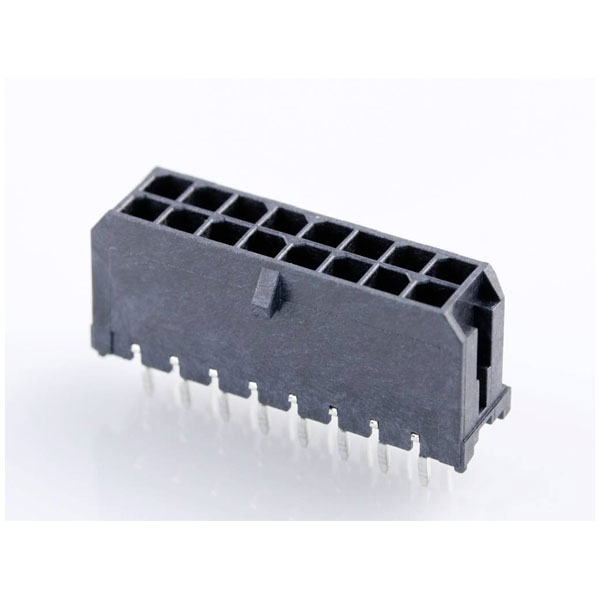

Molex 430451612 Micro-fit 3.0 Header 16-pin 3mm Dual Row Black

Molex
Order Code:

05-3681

Brand: Molex MPN: 430451612 EAN-13: 2050007113126
Qty Unit Price (Ex VAT)
2+ £2.12
3960+ £1.80
7920+ £1.73
11880+ £1.66
15840+ £1.62
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
307 in stock, despatched in 4 working days

Molex manufactures this built-in pin strip with a standard configuration. It features a total of 16 pins with a contact spacing of 3 mm, supplied as one piece per tray. This part is typically used for reliable connections in electronic applications.
Board contact surface Tin
Case Material High temperature resistant thermoplastic
Connection Print
Connector coating thickness 0.254µm
Connector contact surface Tin
Connector orientation Perpendicular (to the PCB)
Contact Material Brass
CS 3mm
Engineering Part No 43045-1612
Engineering Series Name MICRO-FIT HDR ASSY
Engineering Series No 43045
Factory colour Black
Max. temperature +105°C
Min. temperature -40°C
Misc Attribute Molex MOL Power & Signal Sol.
Nominal Current 8.5A
Nominal current - rounded value 8.5A
Nominal Voltage 600V
Number of Rows 2
Packaging Type Tray
Total number of pins 16
Type Built-in pin strip (standard)
